Produktbeskrivning

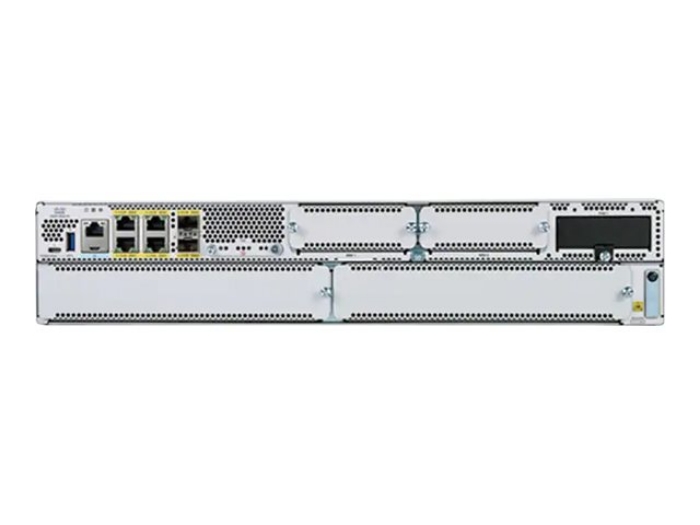

Cisco Catalyst 8300 series Edge Platforms (Catalyst 8300) with Cisco IOS XE SD-WAN Software deliver Cisco's secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 series is purpose-built for high performance and integrated SD-WAN Services along with flexibility to deliver security and networking services together from the cloud or on premises. It provides higher WAN port density and a redundant power supply capability. Catalyst 8300 series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.

The Catalyst 8300 series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.



Egenskaper

● Intel x86 CPU with 8-GB memory default
● High-performance multicore processors support high-speed WAN connections
● Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration
● Increases scalability for IPSec throughput needs for medium- and large-sized branches
● SSL and crypto hardware acceleration
● Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug-and-Play to verify the identity of the hardware and software



Teknisk specifikation

Typ av enhet	Router
Modell	Rackmonterbar - 2U
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Gigabit Ethernet, 10 Gigabit Ethernet
Prestanda	VPN-genomströmning (IMIX IPSec): 5 Gbit/s VPN-genomströmning (1400 B IPSec): 18 Gbps Framåt IPv4-genomströmning (1 400 bytes paketstorlek): 19.7 Gbps
Kapacitet	Maximala överläggstunnlar: 6000 ACL: 4000 Åtkomstkontrollposter (ACE) per system (IPv4): 72000 IPv4-routes: 1600000 IPv6-routes: 1500000 Köer: 16000 NAT-sessioner: 1200000 Brandväggssessioner: 512000 CRF-poster (Virtual Routing and Forwarding): 4000
Nätverks/transportprotokoll	RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTCP
Nätverksprotokoll	OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, PBR (policy-based routing), MPLS, Bidirectional Forwarding Detection (BFD)
Protokoll för administration på distans	SNMP, SCP, OMP
Krypteringsalgoritm	DES, Tredubbel DES, MD5, IKE, TLS, SHA-1, PKI, 128-bitars AES, SHA-2, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 256-bitars AES-GCM, 256-bit AES-CBC, 512-bit SHA, ESP, 748-bitars RSA, 384-bitars SHA, ECDSA 256-bitars, ECDSA 384-bitars, HMAC
Verifieringsmetod	Secure Shell (SSH), RADIUS
Funktioner	NAT-stöd, PAT-stöd, Syslog-stöd, URL-filtrering, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), stöd för ACL (Access Control List), Quality of Service (QoS), DHCP-server, Bidirectional Forwarding Detection (BFD), DHCP-klient, Forward Error Correction (FEC), Class of Service (CoS), Call Admission Control (CAC), Flexible NetFlow (FNF), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), Authentication, Authorization and Accounting (AAA), Hierarchical Quality of Service (HQoS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Datagram Transport Layer Security (DTLS), Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), Application Aware Routing (AAR), Interactive Voice Response (IVR), Service Advertisement Framework (SAF)
Standarder som följs	IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 klass A, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, CISPR 32 Class A, EN 55035, IEC/EN 60825, CAN/CSA C22.2 No. 60950-1
Processor	Intel
RAM	8 GB
Flash-minne	8 GB
Hårddisk	16 GB

VoIP-protokoll	SRTP

Gränssnitt	WAN / LAN: 2 x 10Gb Ethernet WAN / LAN: 4 x Ethernet 1000 USB: 1 x
Expansionskortplatser	2 (totalt)/ 2 (ledig) x service module (SM) 2 (totalt)/ 2 (ledig) x NIM
Antal installerade enheter / moduler (max)	0 (installerad) / 4 (max)

Nätdel	Intern strömförsörjning

MTBF (genomsnittstid mellan fel)	710,300 timmar

Operativsystem erfordras	Cisco IOS XE 17.3.2

Bredd	47 cm
Djup	43.8 cm
Höjd	8.89 cm
Vikt	18.1 kg

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 85 % (icke-kondenserande)

Designat för	P/N: C8300-DNA, UCS-E1100D-M6
