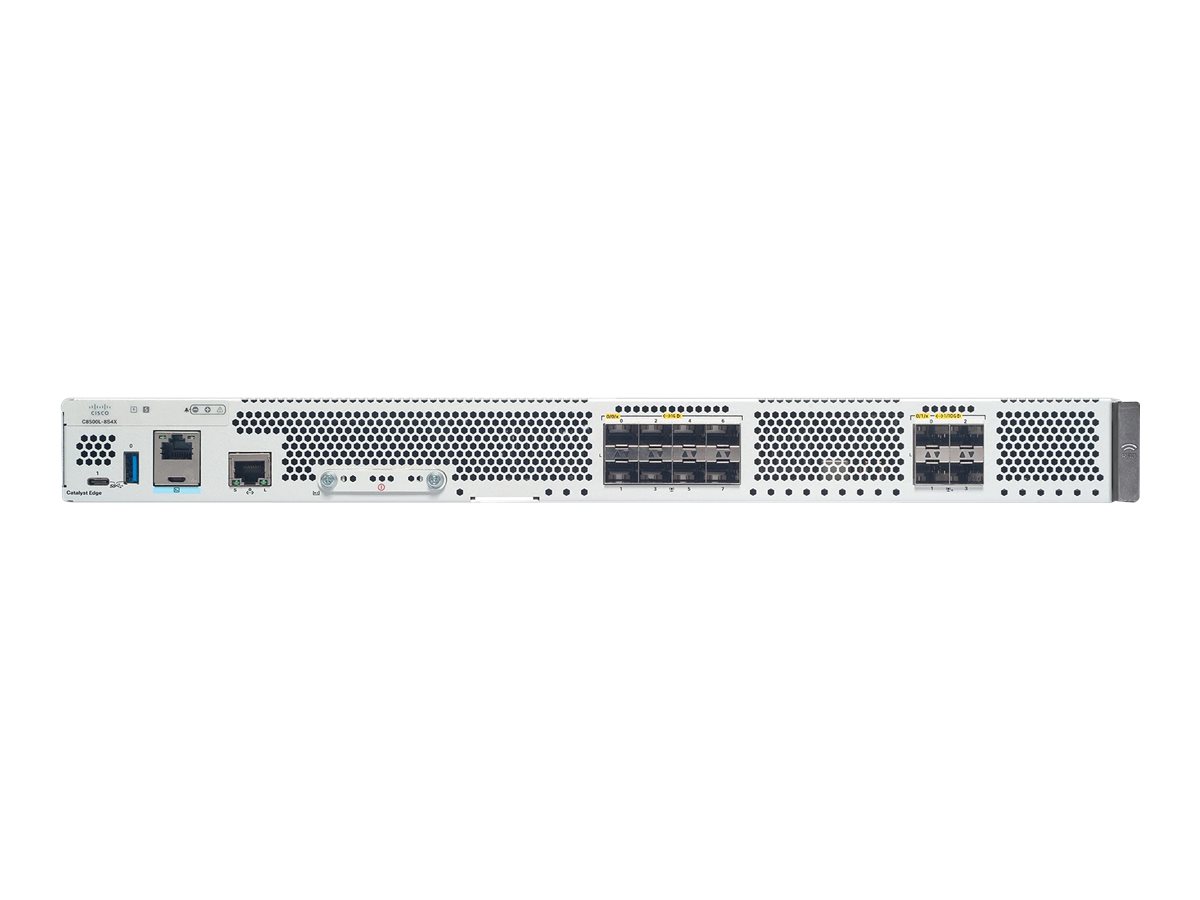

The Cisco Catalyst 8500 series edge platforms are high-performance cloud edge platforms designed for accelerated services, multilayer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.
CPU with multiple cores allocated to control plane with 16 GB memory default for high-speed control plane processes.
Default eUSB for storage for additional storage on the platform.
High-efficiency dual power supplies by default for power supply redundancy.
Allmänt
| Typ av enhet | Switch - 12 portar |
|---|
| Modell | Rackmonterbar 1U |
|---|
| Undertyp | 10 Gigabit Ethernet |
|---|
| Portar | 4 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1000Base-T |
|---|
| Prestanda | SD-WAN IPsec-genomströmning (1 400 bytes, klartext): 19 Gbps
SD-WAN IPsec-genomströmning (IMIX, klartext): 8,6 Gbps
Framåt IPv4-genomströmning (1 400 bytes paketstorlek): 20 Gbps
IPsec-genomströmning (1 400 bytes, klartext): 19 Gbps |
|---|
| Kapacitet | Skala för SD-WAN-tunnlar: 8000
IPsec SVTI-tunnlar: 4000
ACLs per system: 4000
Åtkomstkontrollposter (ACE) per system (IPv4): 50000
IPv4-routes: 3500000
IPv6-routes: 2200000
Köer: 16000
NAT-sessioner: 2000000
Brandväggssessioner: 2000000
CRF-poster (Virtual Routing and Forwarding): 8000 |
|---|
| Nätverksprotokoll | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, statisk IP-routing, IGMPv3, GRE, OSPFv3, PIM-SSM, PBR (policy-based routing), MPLS, Bidirectional Forwarding Detection (BFD), RSVP, LISP |
|---|
| Protokoll för administration på distans | SNMP, SSH, CLI, SCP, NETCONF, NTP, DHCP, IPv4, IPv6, RADIUS, OMP |
|---|
| Krypteringsalgoritm | DES, Tredubbel DES, SHA, MD5, IKE, TLS, PKI, 128-bitars AES, 256 bitars AES, DTLS, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bitars RSA, 384-bitars SHA, ECDSA 256-bitars, ECDSA 384-bitars |
|---|
| Verifieringsmetod | Secure Shell (SSH), RADIUS |
|---|
| Funktioner | Brandväggsskydd, NAT-stöd, VPN-stöd, VLAN-stöd, Syslog-stöd, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), stöd för ACL (Access Control List), Quality of Service (QoS), DHCP-server, DHCP-relä, NTP-server, DHCP-klient, Virtual Routing and Forwarding (VRF), Forward Error Correction (FEC), IPFIX, Flexible NetFlow (FNF), MACsec-support, Application Visibility and Control (AVC), TrustSec-support, Authentication, Authorization and Accounting (AAA), DNS-klient, IPSec-stöd (IP-säkerhet), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), L2TP-stöd, Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Performance Routing (PfR), support för SD-WAN, Application Aware Routing (AAR), DNS-stöd, Secure Unique Device Identification (SUDI) |
|---|
| Standarder som följs | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag |
|---|
| RAM | 16 GB |
|---|
| Inbyggda enheter | 32 GB SSD |
|---|
Diverse
| MTBF (genomsnittstid mellan fel) | 240,200 timmar |
|---|
| Standarder som följs | EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 klass A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, GR-1089-CORE, VCCI Class A, GR-63-CORE, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, EN 55035 |
|---|
