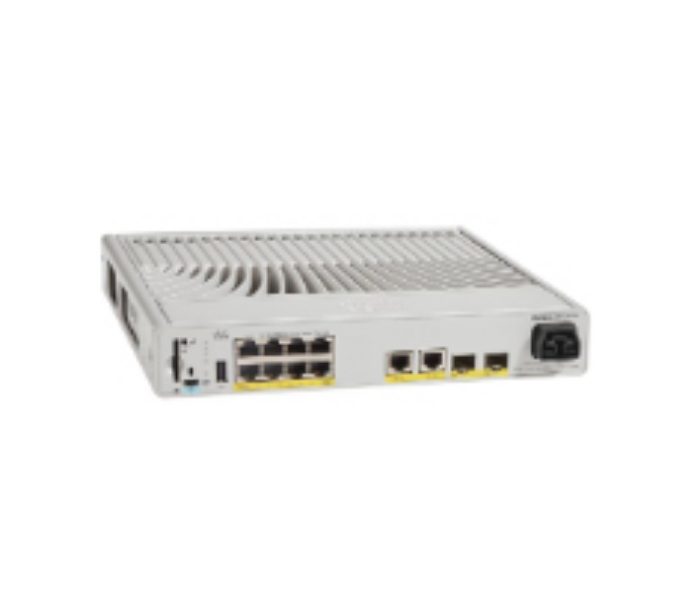

Produktbeskrivning
The Cisco Catalyst 9200CX models consist of fixed-configuration switches with heat dissipating to the top, going to the switch’s built-in heat sink. They are based on the Cisco Unified Access® Data Plane 2.0 mini (UADP) architecture, which not only protects your investment because of flexible and programmable pipelines but also allows a larger scale and higher throughput. The platform runs on the open Cisco IOS® XE Lite operating system, which supports model-driven programmability, robust security, and flexible visibility.
Viktiga egenskaper
Cisco C9200CX-8P-2XGH-E. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: Micro-USB. MAC address table: 32000 entries, Switching capacity: 34 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Quality of Service (QoS) support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 2 |
|---|
| SFP+ module slots quantity | 2 |
|---|
| USB Type-A ports quantity | 1 |
|---|
| Console port | Micro-USB |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Compatible memory cards | SD |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| 10G support | Yes |
|---|
Data transmission
| MAC address table | 32000 entries |
|---|
| Switching capacity | 34 Gbit/s |
|---|
Security
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| IGMP entries | 1000 |
|---|
| Security algorithms | 256-bit AES |
|---|
Multicast features
| Multicast support | Yes |
|---|
| Multicast MAC address table | 1000 entries |
|---|
Design
| Rack mounting | Yes |
|---|
| Stackable | Yes |
|---|
Performance
| Mean time between failures (MTBF) | 553140 h |
|---|
Power
| Power source | DC |
|---|
| Power supply included | Yes |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Total Power over Ethernet (PoE) budget | 240 W |
|---|
Weight & dimensions
| Width | 269 mm |
|---|
| Depth | 244 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 2990 g |
|---|
