Produktbeskrivning

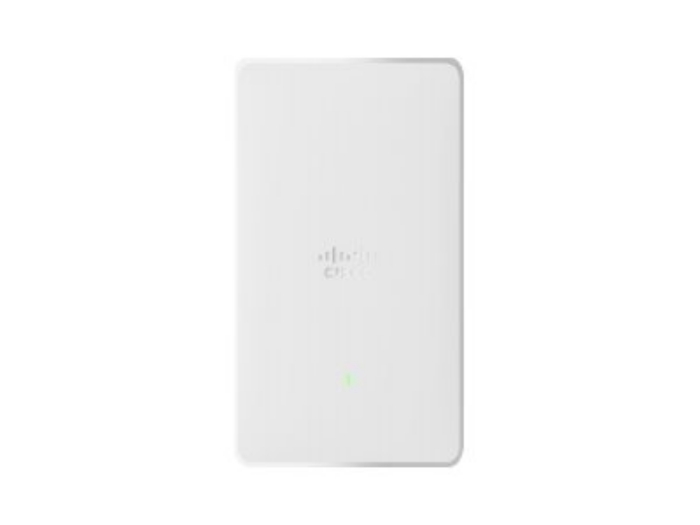

The Catalyst 9105 access points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11 ax) standard, the Catalyst 9105 access points provide integrated security, resiliency, and operational flexibility as well as increased network intelligence. With the Catalyst 9105 access points, you can secure remote workers or the micro-office. The Catalyst 9105 access point is perfect for teleworker deployment because of its small form factor and low power consumption. This easy-to-install teleworker access point provides secure wired and wireless access for organizations with employees who work from home.



Egenskaper

Downlink MU‑MIMO technology
Supporting two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput.

Container support for applications
Container support enables edge computing capabilities for IoT applications on the host access point.

Wi-Fi 6
Wi-Fi 6 delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT.

Bluetooth 5
Integrated Bluetooth 5 radio enables location-based use cases such as asset tracking, way finding or analytics.



Teknisk specifikation

Typ av enhet	Trådlös åtkomstpunkt
Robust design	Inomhus
Bredd	16 cm
Djup	9 cm
Höjd	3.266 cm
Vikt	373.2 g
Lokalisering	Bahrain, Kina

Formfaktor	Väggmonterbar
Anslutningsteknik	Trådlös
Linjekodningsformat	OFDMA
Datalänkprotokoll	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Frekvensband	2.4 GHz, 5 GHz
Statusindikatorer	Status
Funktioner	Stöd för DFS, stöd för ACL (Access Control List), Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream-teknik, radioresurshantering (RRM), cyklisk växlingsmångfald (CSD), stråleformingsteknologi, paketaggregering A-MPDU, paketaggregering A-MSDU, förhandsdelad nyckel (PSK), Dynamic QoS, gäståtkomst, 2x2 MU-MIMO-teknologi, säker omstart, målväntetid (TWT), bildsignering, Cisco Trust-förankringsmodul, BSS-färgning
Krypteringsalgoritm	AES, TLS, PEAP, TTLS, WPA, WPA2, EAP-SIM, WPA3, EAP-FAST
Verifieringsmetod	MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Standarder som följs	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Antenn	Inbyggd
Riktning	Rundstrålande

Kompatibel med Internet of Things (IoT)	Ja
Kommunikationsteknologi	Bluetooth Low Energy (LE)

Gränssnitt	1 x 1/2.5GBase-T - RJ-45 3 x 1000Base-T - RJ-45 1 x administration - RJ-45 1 x USB 2.0

Standarder som följs

CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 60601, VCCI V-3, EN 62209-1, SRRC, EN 300 328, EN 50385, EN 62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, KN 301 489-17

Stöd för PoE (Power Over Ethernet)	UPOE

Service och support	Begränsad garanti - förtida byte av hårdvara - livstid - svarstid: 10 dagar

Min temperatur vid drift	0 °C
Max temperatur vid drift	50 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
