Produktbeskrivning

Extend Intent-Based Networking Everywhere

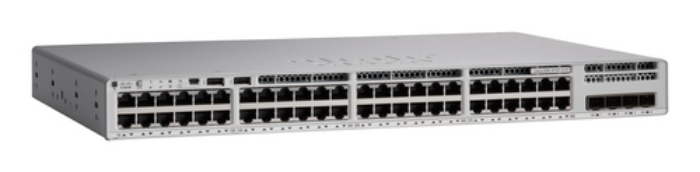

Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.



Viktiga egenskaper

Cisco Catalyst 9200L. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 3. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE)



Teknisk specifikation

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB,

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
USB 2.0 ports quantity	3

Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	100BASE-FX,1000BASE-LX,1000BASE-SX,1000BASE-T
IP routing	Yes
Routing entries	3000
Spanning tree protocol	Yes
IPv6 routes	1500
IPv4 routes	3000
Network virtualization technologies	Virtual Extensible LAN (VXLAN)
Number of VLANs	1024

MAC address table	16000 entries
Switching capacity	176 Gbit/s
Forwarding rate	130.95 Mpps
Jumbo frames support	Yes
Jumbo frames	9198
Packet buffer memory	6 MB

Access Control List (ACL)	Yes
Security algorithms	128-bit AES

Multicast support	Yes

Management protocols	SNMPv1/v2c/v3
Routing protocols	CDP,EIGRP,OSPF,RIP,VRRP

Stackable	Yes
Product colour	Grey
Safety	IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment
Electromagnetic compatibility	47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
Certification	RoHS

Memory type	DRAM
Internal memory	2048 MB
Flash memory	4096 MB
Plug and Play	Yes
Noise level	42 dB
Mean time between failures (MTBF)	346270 h

Power supply included	Yes
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	6 - 12 A

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	740 W

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90 %
Operating altitude	0 - 3000 m
Heat dissipation	3412 BTU/h

Width	445 mm
Depth	329 mm
Height	44 mm
Weight	4800 g

Harmonized System (HS) code	85176990
