Produktbeskrivning

Built for security, IoT, mobility, and cloud

The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 1TB, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) architecture which not only protects your investment but also allows a larger scale and higher throughput. Catalyst 9300X models are based on a new ASIC, UADP 2.5sec, which adds Crypto support in hardware, including IPSEC. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.



Viktiga egenskaper

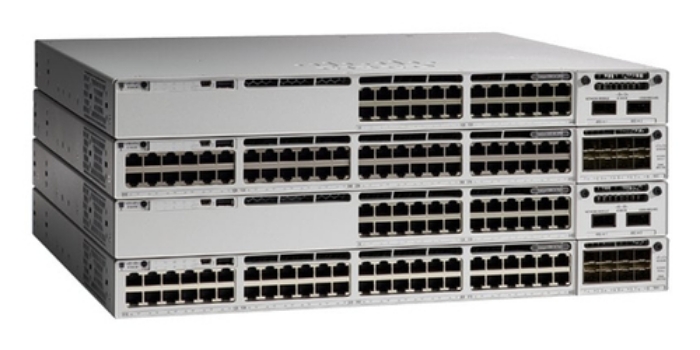

Cisco Catalyst C9300X-12Y-A. Switch type: Managed, Switch layer: L3. MAC address table: 32000 entries, Switching capacity: 1000 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L3

SFP28 ports quantity	12

Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
10G support	Yes

MAC address table	32000 entries
Switching capacity	1000 Gbit/s
Forwarding rate	744.04 Mpps
Jumbo frames support	Yes
Jumbo frames	9198

Rack mounting	Yes
Stackable	Yes
Product colour	Grey
LED indicators	Yes

Mean time between failures (MTBF)	265650 h

Power source	AC
Power supply included	Yes
AC input voltage	100 - 230 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	715 W

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90 %

Width	445 mm
Depth	409 mm
Height	43.9 mm

Harmonized System (HS) code	85176990
