Produktbeskrivning

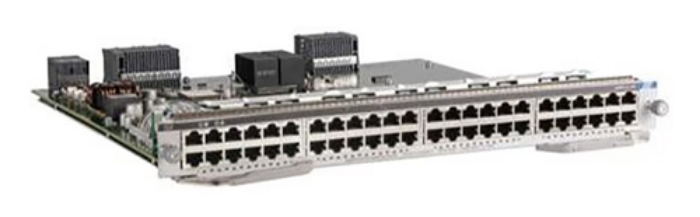

The Catalyst 9400 Series switch UPOE+ line card supports Cisco UPOE+, Cisco UPOE, PoE+ and PoE. Designed for digital building and IoT applications, Cisco Catalyst 9400 Series IEEE 802.3bt compliant 90W UPOE+ line card provides data and power over a single cable to power devices like wireless access points, digital signage, security cameras, thermal cameras with PTZ features, LED lighting fixtures and large display screens. Cisco UPOE+ offers reduced cabling and installation costs without need for permits, device daisy-chaining applications that require higher power draw, uninterrupted power and data using dual supervisors, real-time device information and centralized management and remote control, faster and flexible device installation, where devices can be positioned in practical location instead of proximity to electrical outlets. Additionally these line cards provide advanced energy management through standards-based Energy Efficient Ethernet and lowest thermal dissipation per watt of energy sourced.



Viktiga egenskaper

Cisco C9400-LC-48H-B1. Ethernet interface type: Gigabit Ethernet, Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz,.... Fiber optic connector: SFP. Mean time between failures (MTBF): 874.14 h. Power consumption (typical): 90 W



Teknisk specifikation

Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.3ab,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3bz,IEEE 802.3x,IEEE 802.3z
Jumbo frames support	Yes

Fiber optic connector	SFP

SFP module slots quantity	48

Mean time between failures (MTBF)	874.14 h

Power over Ethernet (PoE)	Yes
Power consumption (typical)	90 W

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95 %
