Produktbeskrivning
The Cisco® Catalyst® 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.
The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Catalyst 9500 Series includes nonblocking 40G Quad Small Form-factor Pluggable (QSFP+) and 1G/10G Small Form-factor Pluggable Plus (SFP/SFP+) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); software-defined access border capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise® virtual technology that are critical for their placement in the campus core. The platform also supports all the foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
Viktiga egenskaper

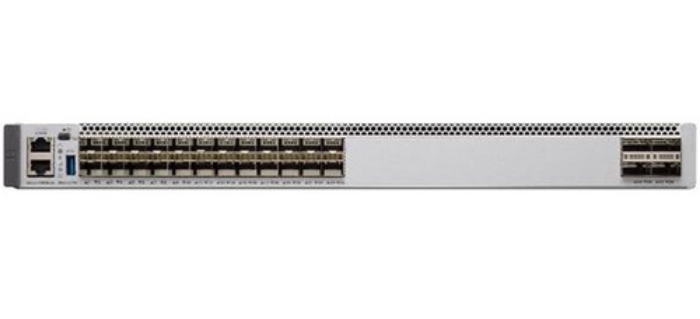

Cisco Catalyst C9500-24Y4C-A. Switch type: Managed, Switch layer: L2/L3. Full duplex. MAC address table: 82000 entries, Switching capacity: 2000 Gbit/s. Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2/L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 0 |
|---|
| Basic switching RJ-45 Ethernet ports type | No |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP28 ports quantity | 24 |
|---|
| QSFP28 ports quantity | 4 |
|---|
Network
| 10G support | Yes |
|---|
| Policy-based routing | Yes |
|---|
| Full duplex | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | Private VLAN,Policy-based VLAN |
|---|
| Number of VLANs | 4000 |
|---|
Data transmission
| MAC address table | 82000 entries |
|---|
| Switching capacity | 2000 Gbit/s |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9198 |
|---|
Security
| DHCP features | DHCP snooping |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| MAC address filtering | Yes |
|---|
| Security algorithms | 256-bit AES |
|---|
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Management protocols | SNMPv1, SNMPv2c, SNMPv3 |
|---|
Design
| Rack mounting | Yes |
|---|
| Stackable | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | Grey |
|---|
Performance
| Built-in processor | Yes |
|---|
| Processor frequency | 2400 MHz |
|---|
| Memory type | DRAM |
|---|
| Internal memory | 16000 MB |
|---|
| Flash memory | 16000 MB |
|---|
Power
| AC input voltage | 90 - 264 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 90 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating altitude | 0 - 1828 m |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
