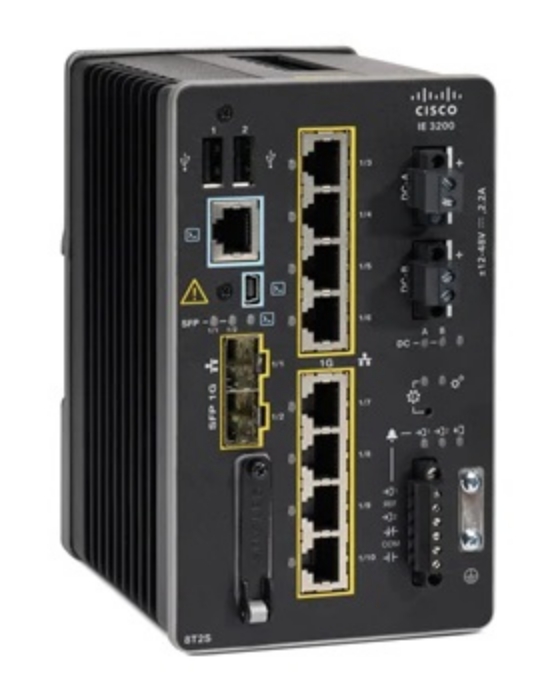

Produktbeskrivning
The Cisco Catalyst® IE3200 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact form factor for a wide variety of extended enterprise and industrial applications.
The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS® XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.
The IE3200 series supports power budget of up to 240W for PoE/PoE+, shared across 8 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
Viktiga egenskaper
Cisco Catalyst IE-3200-8T2S-E. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RS-232. MAC address table: 8000 entries. Networking standards: IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 9.6 - 60 V. Power connector: DC-in jack
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2/L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| ARP inspection | Yes |
|---|
| Traffic shaping | Yes |
|---|
| System event log | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 2 |
|---|
| Console port | RS-232 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Power connector | DC-in jack |
|---|
Network
| Networking standards | IEEE 1588,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| 10G support | No |
|---|
| IP routing | Yes |
|---|
| Rate limiting | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | Voice VLAN |
|---|
| Number of VLANs | 256 |
|---|
Data transmission
| MAC address table | 8000 entries |
|---|
| Number of queues | 8 |
|---|
| Static route | Yes |
|---|
Security
| DHCP features | DHCP server,DHCP snooping |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| IGMP entries | 1000 |
|---|
| SSH/SSL support | Yes |
|---|
| MAC address filtering | Yes |
|---|
| Security algorithms | HTTPS,SNMP,SNMPv3,SSH |
|---|
| Authentication type | HWTACACS+,IEEE 802.1x,Network Access Control (NAC),RADIUS |
|---|
| Authentication | Guest VLAN,MAC-based authentication,Web-based authentication |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | No |
|---|
| Stackable | No |
|---|
| Product colour | Black |
|---|
Performance
| Memory type | DRAM |
|---|
| Internal memory | 2000 MB |
|---|
| Flash memory | 1500 MB |
|---|
| Fanless | Yes |
|---|
| Mean time between failures (MTBF) | 641150 h |
|---|
Power
| DC input voltage | 9.6 - 60 V |
|---|
| Input current | 2.4 A |
|---|
| Power consumption (typical) | 23 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 91.44 mm |
|---|
| Depth | 134.62 mm |
|---|
| Height | 152.4 mm |
|---|
| Weight | 1723.65 g |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
