Produktbeskrivning

The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.

The IE3200 Series provides an option for up to eight ports of Power over Ethernet Plus (PoE+), with a product SKU that is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.



Viktiga egenskaper

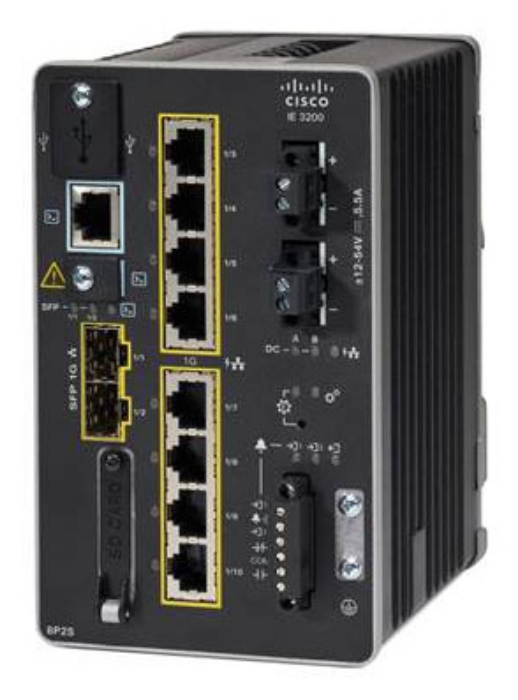

Cisco IE-3200-8P2S-E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1x, IEEE 802.3. DC input voltage: 9.6 - 60 V. Power over Ethernet (PoE)



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Console port	RJ-45
Compatible memory cards	SD

Networking standards	IEEE 802.1x,IEEE 802.3
10G support	No
Broadcast storm control	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
VLAN support	Yes
Virtual LAN features	VLAN Identifier ( VLAN ID)
Number of VLANs	256

MAC address table	8000 entries
Number of queues	8

DHCP features	DHCP server,DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) rules	1500
IGMP snooping	Yes
IGMP entries	1000
BPDU filtering/protection	Yes
MAC address filtering	Yes
Authentication	Guest VLAN,MAC-based authentication
Security algorithms	SNMP,SNMPv3,SSH

Multicast support	Yes

Product colour	Black
International Protection (IP) code	IP30
DIN rail mounting	Yes
Electromagnetic compatibility	FCC 47 CFR 15 B A, EN 55032/CISPR 32 A, VCCI A, AS/NZS CISPR 32 A, CISPR 11 A, ICES 003 A, CNS 13438 A, KN 32 A, EN 300 386
Certification	UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, CB IEC/EN 61010-2-201, UL121201(l, Div 2, A-D), SA 213 (l, Div 2, A-D), UL/CSA 60079-0, -15 (l, 2, Gc/IIC), IEC 60079-0, -15 IECEx (l, 2, Gc/IIC), EN 60079-0, -15 AT

Memory type	DRAM
Internal memory	2048 MB
Flash memory	1500 MB
Dying Gasp	Yes
Mean time between failures (MTBF)	613125 h

Redundant power supply (RPS) support	Yes
DC input voltage	9.6 - 60 V
Input current	5.5 A
Power consumption (typical)	35 W

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W

Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Width	91.44 mm
Depth	134.62 mm
Height	152.4 mm
Weight	1700.971 g

Harmonized System (HS) code	85176990
