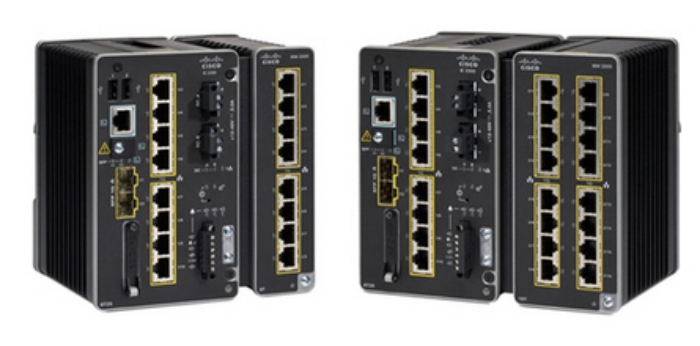

Cisco Catalyst IE3300 Rugged Series Data Sheet

The Cisco Catalyst IE3300 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.

Product overview

Cisco Catalyst IE3300 Rugged Series switches deliver high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Cisco Industrial Network Director, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.

The IE3300 series (with expansion module) supports power budget of up to 360W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.



Viktiga egenskaper

Cisco Catalyst IE3300. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 9.6 - 60 V. Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
ARP inspection	Yes
System event log	Yes
MIB support	802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-M

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP module slots quantity	2
Console port	RJ-45

Networking standards	IEEE 1588,IEEE 802.11ac,IEEE 802.11n,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x
10G support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Broadcast storm control	Yes

MAC address table	8000 entries
Number of queues	8

DHCP features	DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) IPv4 entries	2000
Access Control List (ACL) IPv6 entries	512
IGMP snooping	Yes
IGMP entries	1000
BPDU filtering/protection	Yes
MAC address filtering	Yes
Security algorithms	802.1x RADIUS
Authentication	Guest VLAN

Multicast support	Yes

Management protocols	IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
Switching protocols	IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier

Rack mounting	Yes
Product colour	Black
LED indicators	Yes
DIN rail mounting	Yes
International Protection (IP) code	IP20
Certification	UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55

Internal memory	4000 MB
Flash memory	1500 MB
Mean time between failures (MTBF)	611.35 h

Power source	PoE
Power supply included	Yes
AC input voltage	120 - 230 V
DC input voltage	9.6 - 60 V
Input current	6.3 A
Power consumption (typical)	6 W

Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Non-operating altitude	0 - 4572 m

Width	112 mm
Depth	135 mm
Height	152 mm
Weight	2000 g

Cables included	AC
Manual	Yes
User guide	Yes

Harmonized System (HS) code	85176990
