Produktbeskrivning

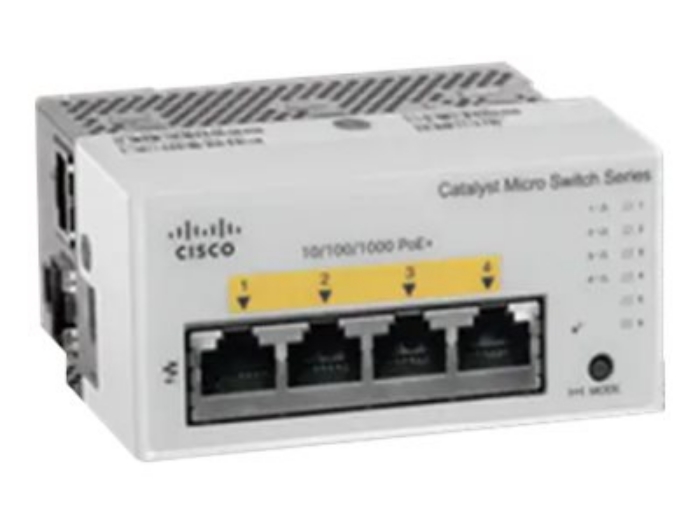

The Cisco Catalyst Micro Switches are Cisco's purpose-built product family for FTTx deployments, allowing customers to eliminate IDF, save precious real estate, conserve energy, and cut cabling costs.

Fiber to the desk, office, etc. (FTTx) is not a new concept. In this deployment scenario, the improved range of fiber optics over copper cables allows access switches to be deployed right next to the end devices, with uplinks connected directly to the main distribution frame, eliminating the need for an intermediate distribution frame on each floor. However, as access switches get closer to the end users, the requirements for operating noise and product footprint get stricter. Enter the Cisco Catalyst Micro Switches, a product family of small, fanless switches purpose-built for FTTx deployments. These switches offer flexible mounting options and open up a variety of network design and connectivity opportunities.



Teknisk specifikation

Typ av enhet	Switch - 6 portar
Modell	Väggmonterbar
Undertyp	Gigabit Ethernet
Portar	4 x 10/100/1000 (4 PoE+) + 2 x SFP
Prestanda	Vidarekopplingsbandbredd: 6 Gbps Switchningsbandbredd: 12 Gbps Vidarebefordringshastighet (paket med 64 bytes): 8,928 Mpps
Kapacitet	VLAN-stöd: 64 Portkanaler: 4 VLAN ID:n: 4094 Köer: 4
MAC Address Table Size	15.000 poster
Protokoll för administration på distans	RMON, SNMP 3, DHCP
Verifieringsmetod	RADIUS, TACACS+, MACAuth
Funktioner	Fläktlös, LLDP-support, LACP (Link Aggregation Control Protocol), VLAN Trunking Protocol (VTP), LLDP-MED, Private VLAN, stöd för CoAP, säker omstart, EEE (Energy-Efficient Ethernet)
Standarder som följs	IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3az
RAM	512 MB
Flash-minne	256 MB
Statusindikatorer	Portstatus, PoE, länk/akvititet, hastighet

Gränssnitt	4 x 10/100/1000 Base-T (PoE) RJ-45 2 x SFP

Standarder som följs	CISPR 24, EN55022, EN55024, CISPR 22, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS CISPR22:2004 Class A, FCC CFR47 Part 15 A, IEC 62368-1, UL 62368-1, KN32:2015, KN35:2015, V-3/2015.04, ICES-003 issue 6:2016, TCVN 7317:2003, CAN/CSA C22.2 No. 60950-1, TCVN 7189: 2009

Medföljande programvara	LAN Lite Software

Bredd	9 cm
Djup	7.88 cm
Höjd	4.55 cm
Vikt	600 g

Service och support	Begränsad garanti - förtida byte av hårdvara - livstid - svarstid: nästa arbetsdag Tekniskt stöd - 90 dagar

Min temperatur vid drift	-5 °C
Max temperatur vid drift	35 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
Min temperatur vid förvaring	-25 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid lagring	5 - 95 % (icke-kondenserande)
