Produktbeskrivning

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.



Viktiga egenskaper

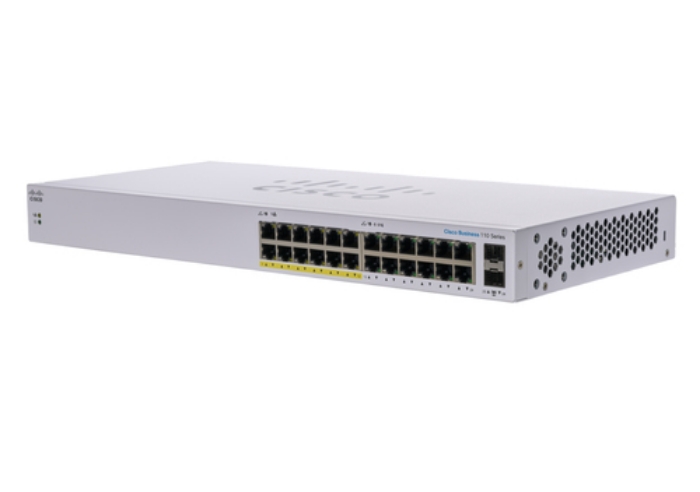

Cisco Business CBS110-24PP-D Unmanaged Switch | 24 Port GE | Partial PoE | 2x1G SFP Shared | Limited Lifetime Protection (CBS110-24PP-D). Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8192 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4

Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Cable types supported	Cat5e
Full duplex	Yes
Half duplex	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
Head-of-line (HOL) blocking	Yes
Flow control support	Yes

MAC address table	8192 entries
Switching capacity	48 Gbit/s
Forwarding rate	35.7 Mpps
Jumbo frames support	Yes
Jumbo frames	9216

Loop protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)

Rack mounting	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes
Market segment	Business
Country of origin	China
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B

Built-in processor	Yes
Processor frequency	400 MHz
Internal memory	64 MB
Flash memory	8 MB
Mean time between failures (MTBF)	340703 h

Compliance certificates	CE
Products per shipping (inner) case	1 pc(s)

Power supply included	Yes
Power supply location	Internal
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Power saving mode (EEE)	Yes
Power plug type	Type C

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	12
Total Power over Ethernet (PoE) budget	100 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 90 %
Heat dissipation	462.93 BTU/h

Width	202.438 mm
Depth	439.928 mm
Height	43.942 mm
Weight	3030.03 g

Quick start guide	Yes
Manual	Yes
Package width	320.04 mm
Package depth	536.956 mm
Package height	105.918 mm
Package weight	4490.61 g

Sustainability compliance	Yes

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)

Diagnostics	Cable diagnostics
