Produktbeskrivning

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.



Viktiga egenskaper

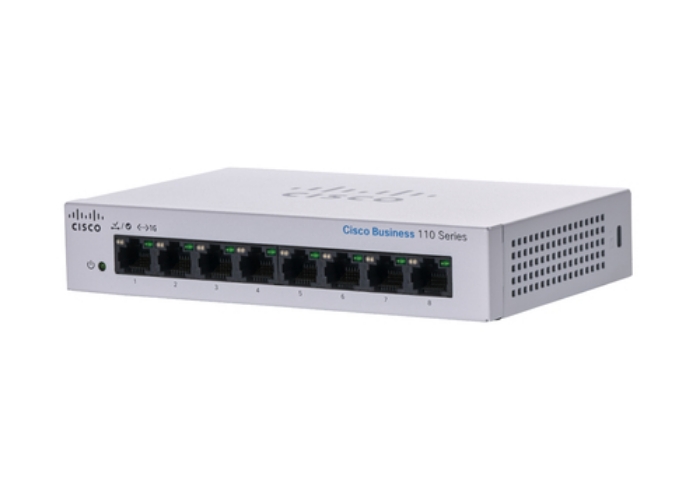

Cisco Business CBS110-8T-D Unmanaged Switch | 8 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-8T-D). Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Form factor: Desktop



Teknisk specifikation

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4

Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Half duplex	Yes
Full duplex	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Auto MDI/MDI-X	Yes

MAC address table	8192 entries
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9216

Loop protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)

Rack mounting	No
Form factor	Desktop
Product colour	Grey
LED indicators	Yes
Market segment	Business
Country of origin	China
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B

Mean time between failures (MTBF)	2066844 h

Products per shipping (inner) case	1 pc(s)

Power supply location	External
Power supply included	Yes
Redundant power supply (RPS) support	No
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 Hz
DC input voltage	12 V
Power saving mode (EEE)	Yes
Power plug type	Type C

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 90 %
Heat dissipation	14.09 BTU/h

Width	103.378 mm
Depth	160.02 mm
Height	32.004 mm
Weight	426.11 g

Quick start guide	Yes
Package width	158.75 mm
Package depth	282.956 mm
Package height	55.88 mm
Package weight	839.15 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)

Diagnostics	Cable diagnostics
