Produktbeskrivning

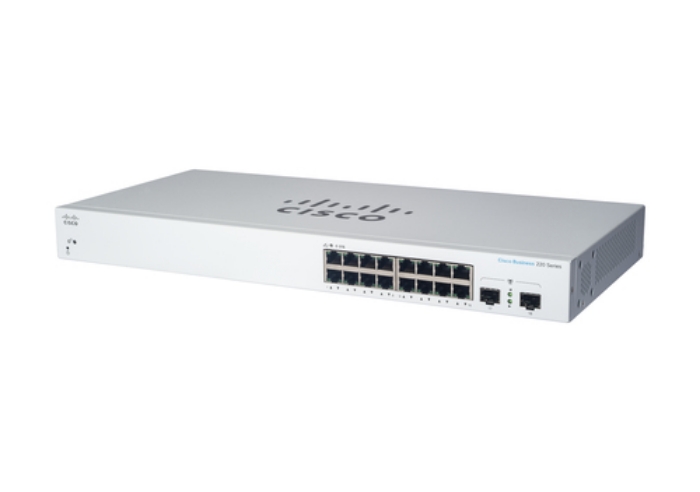

The Cisco Business CBS220-16P-2G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.



Viktiga egenskaper

Cisco Business CBS220-16P-2G Smart Switch | 16 Port GE | PoE | 2x1G SFP | 3-Year Limited Hardware Warranty (CBS220-16P-2G-UK). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8192 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at,.... Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	Yes

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2

Networking standards	IEEE 802.1D,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Number of VLANs	256

MAC address table	8192 entries
Switching capacity	36 Gbit/s
Jumbo frames support	Yes
Jumbo frames	9216

DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	512
IGMP snooping	Yes
IGMP entries	256
Security algorithms	SSL/TLS
Loop protection	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
MAC address filtering	Yes

Multicast support	Yes
Number of multicast groups filtered	256

Management protocols	SNMP
GARP VLAN Registration Protocol (GVRP)	Yes

Rack mounting	Yes
Product colour	White
Reset button	Yes
LED indicators	Yes
Market segment	Business
Country of origin	China

Firmware upgradeable	Yes

Products per shipping (inner) case	1 pc(s)

AC input frequency	50 - 60 Hz
Power plug type	Type C

Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	130 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %

Width	202.438 mm
Depth	439.928 mm
Height	43.942 mm
Weight	3029.38 g

Package width	342.9 mm
Package depth	574.04 mm
Package height	106.68 mm
Package weight	4607.56 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)
