Produktbeskrivning

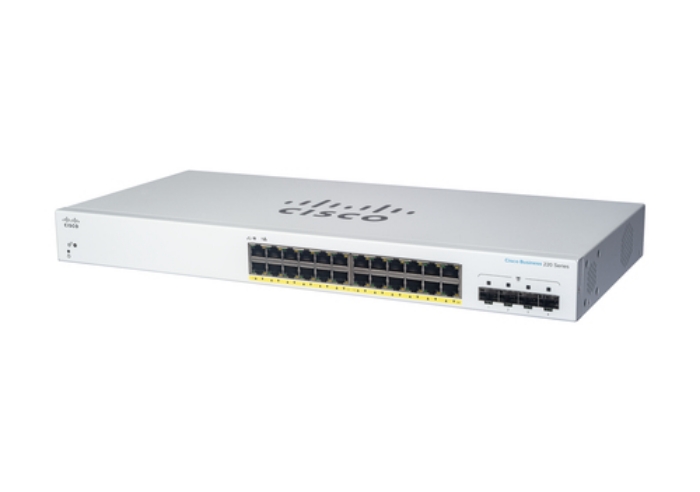

The Cisco Business CBS220-24T-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.



Viktiga egenskaper

Cisco Business CBS220-24T-4G Smart Switch | 24 Port GE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-24T-4G-UK). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4

Networking standards	IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Broadcast storm control	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	256

MAC address table	8192 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.66 Mpps
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	4.1 MB

DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Authentication type	IEEE 802.1x,RADIUS
Security algorithms	SNMP,SNMPv2,SNMPv3
SSH/SSL support	Yes
Loop protection	Yes
MAC address filtering	Yes
BPDU filtering/protection	Yes

Multicast support	Yes
Multicast MAC address table	8192 entries

Management protocols	SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP

Rack mounting	Yes
Form factor	1U
Product colour	White
Reset button	Yes
LED indicators	Yes
Market segment	Business
Country of origin	China

Built-in processor	Yes
Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Yes

Products per shipping (inner) case	1 pc(s)

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power plug type	Type C

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Heat dissipation	61.42 BTU/h

Width	202.438 mm
Depth	439.928 mm
Height	43.942 mm
Weight	4507.79 g

Package width	320.04 mm
Package depth	535.94 mm
Package height	106.68 mm
Package weight	6008.88 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)
