Produktbeskrivning
Simple, affordable business networking
The Cisco Business 220 Series Smart Switches are simple and affordable smart switches for business-class networks. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
Cisco Small Business Support Service
Get software updates, extended access to the Cisco Small Business Support Center, and expedited hardware replacement if you need it. The Cisco Small Business Support Service helps you protect your investment and get added value from Cisco Business products. The service is delivered by Cisco and backed by your Cisco partner.
Small business networking solutions
Operate your network with simple, flexible, and highly secure solutions specifically designed for the small business.
Viktiga egenskaper

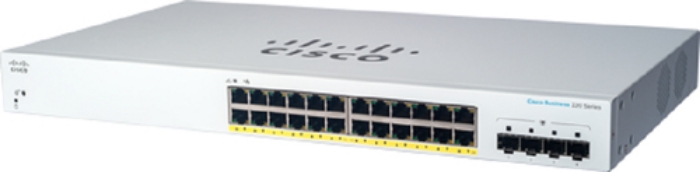

Cisco CBS220-24P-4G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| System event log | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 4 |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| 10G support | Yes |
|---|
| Port mirroring | Yes |
|---|
| IP routing | Yes |
|---|
| Head-of-line (HOL) blocking | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Link aggregation | Yes |
|---|
| Flow control support | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 256 |
|---|
Data transmission
| MAC address table | 8192 entries |
|---|
| Switching capacity | 56 Gbit/s |
|---|
| Forwarding rate | 41.66 Mpps |
|---|
| Number of queues | 8 |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9216 |
|---|
| Packet buffer memory | 4.1 MB |
|---|
Security
| DHCP features | DHCP client |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| Loop protection | Yes |
|---|
| MAC address filtering | Yes |
|---|
| BPDU filtering/protection | Yes |
|---|
| SSH/SSL support | Yes |
|---|
| Authentication type | IEEE 802.1x,RADIUS |
|---|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
|---|
| Security algorithms | SSH,SSH-2,SSL/TLS |
|---|
Multicast features
| Multicast support | Yes |
|---|
| Multicast MAC address table | 8192 entries |
|---|
Protocols
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | White |
|---|
| Reset button | Yes |
|---|
| LED indicators | Yes |
|---|
| Number of fans | 1 fan(s) |
|---|
Performance
| Built-in processor | Yes |
|---|
| Internal memory | 256 MB |
|---|
| Flash memory | 64 MB |
|---|
| Firmware upgradeable | Yes |
|---|
Power
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Heat dissipation | 833.59 BTU/h |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 203 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 2750 g |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
