Produktbeskrivning

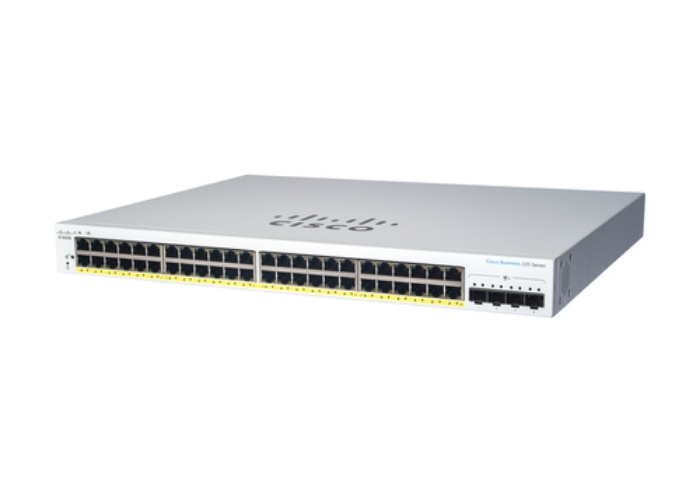

The Cisco Business CBS220-48P-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.



Viktiga egenskaper

Cisco Business CBS220-48P-4G Smart Switch | 48 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-48P-4G-UK). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at,.... Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	Yes

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4

Networking standards	IEEE 802.1D,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Port mirroring	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
VLAN support	Yes
Number of VLANs	256

MAC address table	8192 entries
Switching capacity	104 Gbit/s
Forwarding rate	74.38 Mpps
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	12 MB

DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	512
IGMP entries	256
IGMP snooping	Yes
Security algorithms	SSL/TLS
MAC address filtering	Yes
BPDU filtering/protection	Yes
Loop protection	Yes
SSH/SSL support	Yes

Multicast support	Yes
Number of multicast groups filtered	256

Management protocols	SNMP
GARP VLAN Registration Protocol (GVRP)	Yes

Rack mounting	Yes
Product colour	White
Reset button	Yes
LED indicators	Activity,Link,Speed,System
Market segment	Business
Number of fans	1 fan(s)
Country of origin	China

Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Yes

Products per shipping (inner) case	1 pc(s)

Power source	AC
Power supply included	Yes
Power consumption (typical)	52.6 W
Power consumption (max)	478.2 W
Power plug type	Type C

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	48
Total Power over Ethernet (PoE) budget	382 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %

Width	350 mm
Depth	440 mm
Height	44 mm
Weight	5287.81 g

Package width	513.08 mm
Package depth	574.04 mm
Package height	109.22 mm
Package weight	7274.14 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)
