Produktbeskrivning
The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.
With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees.
Cisco Business 220 Series provides capabilities that help you create business-class networks. These features deliver a solution to simplify the operation, increase uptime, and get your business better connected to employees, customers, and suppliers.
Viktiga egenskaper

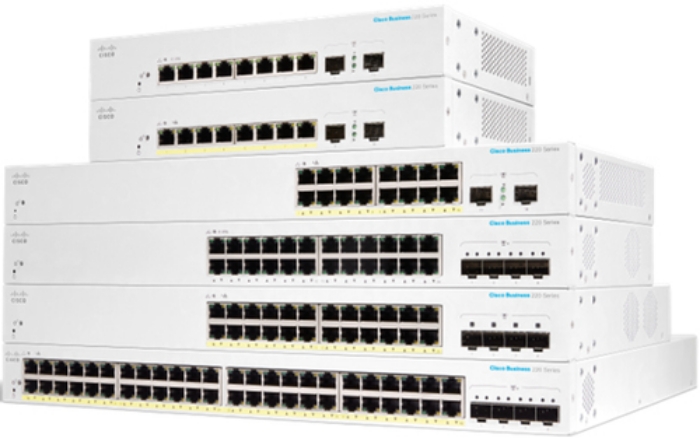

Cisco CBS220-48P-4X-EU. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z,.... Power over Ethernet (PoE). Rack mounting
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| System event log | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| SFP+ module slots quantity | 4 |
|---|
Network
| Networking standards | IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x,IEEE 802.3at,IEEE 802.3z,IEEE 802.1D,IEEE 802.1w,IEEE 802.1x |
|---|
| 10G support | Yes |
|---|
| Port mirroring | Yes |
|---|
| Head-of-line (HOL) blocking | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Flow control support | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Link aggregation | Yes |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 256 |
|---|
Data transmission
| MAC address table | 8192 entries |
|---|
| Switching capacity | 176 Gbit/s |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9216 |
|---|
Security
| DHCP features | DHCP client |
|---|
| Access Control List (ACL) | Yes |
|---|
| Access Control List (ACL) rules | 512 |
|---|
| IGMP snooping | Yes |
|---|
| IGMP entries | 256 |
|---|
| Loop protection | Yes |
|---|
| MAC address filtering | Yes |
|---|
| BPDU filtering/protection | Yes |
|---|
| SSH/SSL support | Yes |
|---|
| Security algorithms | SSL/TLS |
|---|
Multicast features
| Multicast support | Yes |
|---|
| Number of multicast groups filtered | 256 |
|---|
Protocols
| Management protocols | SNMP |
|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Product colour | White |
|---|
| Reset button | Yes |
|---|
| LED indicators | Yes |
|---|
Performance
| Firmware upgradeable | Yes |
|---|
Power
| AC input frequency | 50 - 60 Hz |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) ports quantity | 48 |
|---|
| Total Power over Ethernet (PoE) budget | 382 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 350 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 5360 g |
|---|
