Produktbeskrivning

Product overview
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be priorities, while ongoing management and operations add additional complexity that takes time and resources.

Cisco Business is a portfolio of affordable wireless access points, switches, and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring, and lifecycle management of the network.

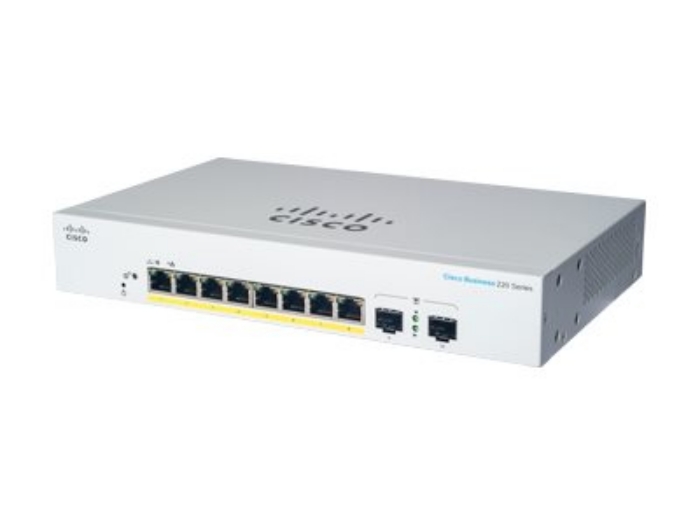

Cisco Business 220 Series Smart Switches
The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.



Viktiga egenskaper

Cisco CBS220-8P-E-2G-EU. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8192 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at,.... Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2

Networking standards	IEEE 802.1D,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Port mirroring	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	256

MAC address table	8192 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	4.1 MB

DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	512
IGMP snooping	Yes
IGMP entries	256
Loop protection	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
Security algorithms	SSL/TLS

Multicast support	Yes
Number of multicast groups filtered	256

Management protocols	SNMP
GARP VLAN Registration Protocol (GVRP)	Yes

Rack mounting	Yes
Product colour	White
Reset button	Yes
LED indicators	Activity,Link,Speed,System

Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Yes

Power source	AC
Power supply included	Yes
Power consumption (typical)	5.7 W
Power consumption (max)	81.6 W

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	65 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Heat dissipation	273.43 BTU/h

Width	279 mm
Depth	170 mm
Height	44 mm
Weight	1180 g

Harmonized System (HS) code	85176990
