Produktbeskrivning

In today's hyperconnected world, reliable access to network resources is critical to all businesses. However, you also need to invest wisely to stay competitive, knowing how to separate the essential from the extraneous and get the most value for your dollar. While building a solid foundation for your business network infrastructure is essential, it doesn’t mean you need the most advanced feature set on the market.

For businesses requiring high performance, advanced security, and rich manageability from the network, fully managed switches are an excellent choice. However, they also typically come with high price tags. Smart switches provide the right level of network features and capabilities for growing businesses at an affordable price, so you’ll have more dollars to put toward growing your business.

With Cisco® Business 250 Series Smart Switches, you can achieve enterprise-grade network performance and security without paying for advanced network features that you will not use. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, Cisco Business 250 Series Smart Switches provide the ideal solution at an affordable pricing point.

The Cisco Business 250 Series is the next generation of affordable smart switches that combine powerful network performance and reliability with a complete suite of the network features you need for a solid business network. These powerful Gigabit Ethernet switches, with Gigabit or 10 Gigabit Ethernet uplinks, provide multiple management options, sophisticated security capabilities, and fine-tuned Quality of Service (QoS) and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. And with an easy-to-use web user interface and Power over Ethernet Plus (PoE+) capability, you can deploy and configure a complete business network in minutes.



Viktiga egenskaper

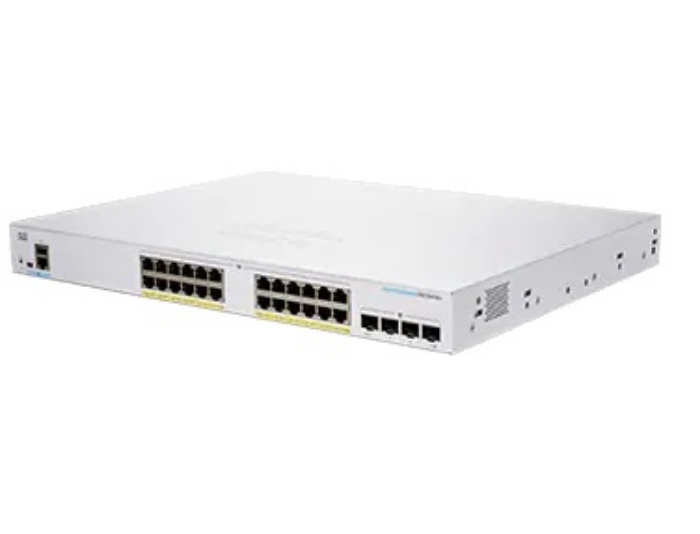

Cisco CBS250-24P-4X-EU. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
MIB support	Yes

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
USB 2.0 ports quantity	1

Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1af,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u
Port mirroring	Yes
Ethernet LAN data rates	1000 Mbit/s
Spanning tree protocol	Yes
Auto MDI/MDI-X	Yes
Flow control support	Yes
Broadcast storm control	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Number of VLANs	255

MAC address table	8000 entries
Jumbo frames support	Yes
Jumbo frames	9000

DHCP features	DHCP relay,DHCPv6 client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	512
IGMP snooping	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
Password protection	Yes
Security algorithms	HTTPS,SSH,SSL/TLS

Multicast support	Yes

Management protocols	SNMP

Rack mounting	Yes
Product colour	Silver
Reset button	Yes
LED indicators	Yes

Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	512 MB
Flash memory	256 MB
Firmware upgradeable	Yes

Power supply included	Yes
AC input frequency	50 - 60 Hz

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %

Harmonized System (HS) code	85176990
