Produktbeskrivning

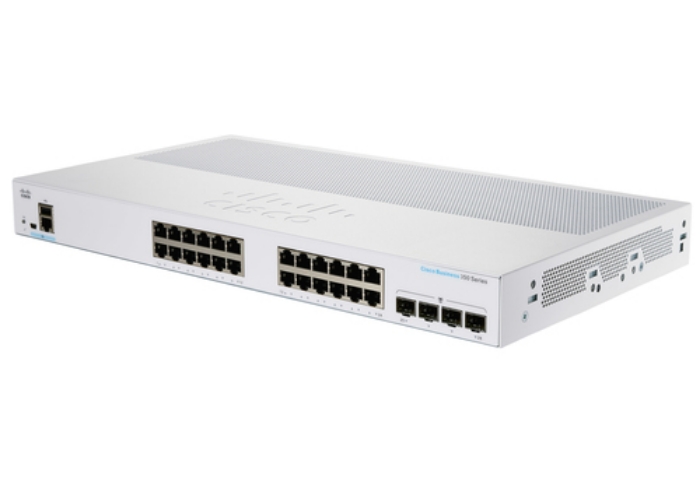

The Cisco Business CBS350-24T-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support.
Viktiga egenskaper
Cisco Business CBS350-24T Managed Switch | 24 Port GE | 4x10G SFP+ | Limited Lifetime Protection (CBS350-24T-4X). Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Cloud-managed | Yes |
|---|
| Web-based management | Yes |
|---|
| ARP inspection | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| System event log | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 24 |
|---|
| Combo SFP ports quantity | 4 |
|---|
| SFP+ module slots quantity | 4 |
|---|
| Console port | RJ-45/Mini-USB |
|---|
| USB 2.0 ports quantity | 1 |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| 10G support | Yes |
|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
|---|
| Cable types supported | Cat5e |
|---|
| Port mirroring | Yes |
|---|
| Full duplex | Yes |
|---|
| Policy-based routing | Yes |
|---|
| Half duplex | Yes |
|---|
| Flow control support | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Link aggregation | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Cable length detection | Yes |
|---|
| Rate limiting | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | IP subnet–based VLAN,MAC address-based VLAN,Multicast VLAN,Port-based VLAN,Private VLAN,Protocol-based VLAN,Stacked VLAN,Tagged VLAN,VLAN mapping,Voice VLAN |
|---|
| Number of VLANs | 4094 |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 128 Gbit/s |
|---|
| Forwarding rate | 95.23 Mpps |
|---|
| Number of queues | 8 |
|---|
| Static route | Yes |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9000 |
|---|
| Packet buffer memory | 1.5 MB |
|---|
Security
| DHCP features | DHCP Option 82,DHCP client,DHCP relay,DHCP server |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| Loop protection | Yes |
|---|
| Authentication | Guest VLAN,Web-based authentication |
|---|
| Queue scheduling algorithms | SP,Weighted Round Robin (WRR) |
|---|
| Security algorithms | 802.1x RADIUS |
|---|
| Authentication type | IEEE 802.1x,RADIUS |
|---|
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Management protocols | SNMP 1/2c/3, Telnet |
|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|
| IPv4 & IPv6 features | IPv6 First Hop Security (FHS) |
|---|
| IP Source Guard (IPSG) | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | Grey |
|---|
| Reset button | Yes |
|---|
| LED indicators | Yes |
|---|
| Market segment | Business |
|---|
| Country of origin | China |
|---|
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|---|
| Stacking | Yes |
|---|
Performance
| Built-in processor | Yes |
|---|
| Processor frequency | 800 MHz |
|---|
| Internal memory | 512 MB |
|---|
| Flash memory | 256 MB |
|---|
Technical details
| Products per shipping (inner) case | 1 pc(s) |
|---|
Power
| Power supply included | Yes |
|---|
| Power supply location | Internal |
|---|
| Redundant power supply (RPS) support | No |
|---|
| Number of power supply units | 1 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 Hz |
|---|
| Power plug type | Type C |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
Weight & dimensions
| Width | 240.538 mm |
|---|
| Depth | 444.5 mm |
|---|
| Height | 43.942 mm |
|---|
| Weight | 1801.23 g |
|---|
Packaging data
| Cables included | AC |
|---|
| Quick start guide | Yes |
|---|
| Rack mount kit | Yes |
|---|
| Package width | 369.2652 mm |
|---|
| Package depth | 575.0052 mm |
|---|
| Package height | 105.9942 mm |
|---|
| Package weight | 4508.75 g |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
| Harmonized System (HS) code | 85176990 |
|---|
| Products per master (outer) case | 1 pc(s) |
|---|
