Produktbeskrivning

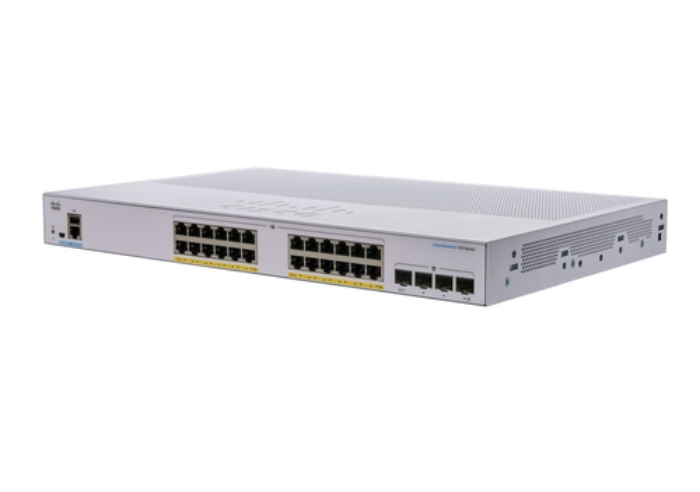

The Cisco Business CBS350-24P-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support.



Viktiga egenskaper

Cisco Business CBS350-24P-4X Managed Switch | 24 Port GE | PoE | 4x10G SFP+ | Limited Lifetime Protection (CBS350-24P-4X). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
ARP inspection	Yes
MIB support	Yes

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
SFP+ module slots quantity	4
USB 2.0 ports quantity	1

Networking standards	IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Number of VLANs	4094

MAC address table	16000 entries
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9000

DHCP features	DHCP relay,DHCP server,DHCPv6 client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	1024
IGMP snooping	Yes
Password protection	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
Authentication	Guest VLAN,Web-based authentication
Security algorithms	802.1x RADIUS

Multicast support	Yes

Management protocols	SNMP
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv6 First Hop Security​ (FHS)
IP Source Guard (IPSG)	Yes

Rack mounting	Yes
Product colour	Silver
Reset button	Yes
LED indicators	Yes
Market segment	Business
Country of origin	China
Stacking	Yes

Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	512 MB
Flash memory	256 MB
Firmware upgradeable	Yes

Products per shipping (inner) case	1 pc(s)

Power supply included	Yes
Power supply location	Internal
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Power plug type	Type C

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	195 W

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %

Width	299.212 mm
Depth	444.5 mm
Height	43.942 mm
Weight	1465.12 g

Package width	429.9966 mm
Package depth	575.0052 mm
Package height	105.9942 mm
Package weight	5620.07 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)
