Produktbeskrivning

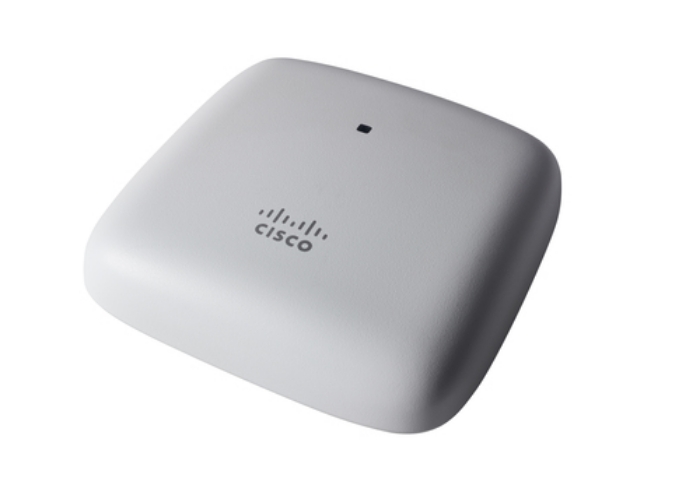

The Cisco Business 140AC Access Point delivers powerful multi-user, multiple input, multiple output (MU-MIMO) (2x2) wireless in a compact form factor. Ideal for indoor Wi-Fi coverage, the Cisco Business 140AC delivers a highly secure and reliable wireless connection for small business workplaces.

Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.



Viktiga egenskaper

Cisco Business 140AC 802.11ac 2x2 Wave 2 Access Point 1 GbE Port- Ceiling Mount, Limited Lifetime Protection (CBW140AC-E). 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: WPA, WPA2, WPA3, WPA2-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White



Teknisk specifikation

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz
Networking standards	IEEE 802.3af,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Number of users	400 user(s)
Channels quantity	29 channels
MIMO	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Dynamic Frequency Selection (DFS)	Yes
Transmitting power	20 dBmW

Security algorithms	WPA,WPA2,WPA3,WPA2-Enterprise
MAC address filtering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0

Power over Ethernet (PoE)	Yes
AC input frequency	50 Hz
AC input voltage	100 - 240 V
Power plug type	Type C

Placement	Ceiling,Wall
Product colour	White
LED indicators	Yes
Market segment	Business
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B) FCC Part 15.107 / 15

Antenna type	Internal
Antenna features	Integrated antenna
Antenna gain level (max)	4 dBi

Built-in processor	Yes
Processor frequency	710 MHz
Internal memory	1000 MB
Flash memory	256 MB

Products per shipping (inner) case	1 pc(s)

Width	150.8 mm
Depth	150.8 mm
Height	33 mm
Weight	373 g

Package width	239.649 mm
Package depth	220.599 mm
Package height	69.85 mm
Package weight	898 g

Mounting kit	Yes

Antenna	2X2:2SS – 80 MHz

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 90 %
Non-operating altitude	0 - 4500 m
Operating altitude	0 - 3000 m

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Country of origin	China
Products per master (outer) case	1 pc(s)
