Produktbeskrivning

The Cisco® Business 100 Series Mesh Extenders offer highly secure wired and wireless connectivity to the home office or small office, and work in hard-to-reach places. These mesh extenders provide seamless coverage and expanded capacity in conjunction with Cisco Business access points.

Features and benefits

Build with simplicity and flexibility in mind, the Cisco Business 100 Series Mesh Extenders expand the deployment of traditional wireless networks while reducing deployment costs. Perfect for use within a small office or back office, they provide connectivity to both local and cloud-based services.

When paired with a Cisco Business access point, the Cisco Business 100 Series Mesh Extenders provide a highly secure and seamless wireless end-user experience.

Cisco Business Mobile app

The Cisco Business 100 Series Mesh Extenders is managed by the Cisco Business Mobile app, an intuitive client application that simplifies traditional challenges associated with wireless network deployment, right from your mobile device. You can extend your network by adding new mesh extenders and automating wireless network activation in minutes. A robust management capability dynamically changes network configuration such as enabling guest access. Network usage, traffic patterns, and network throughput can be closely monitored, providing a real-time snapshot; this not only provides peace of mind, it virtually ensures optimal user experience. The Cisco Business Mobile app is available for iPhone, iPad, and Android devices.

Increased wireless performance

The Cisco Business 100 Series Mesh Extenders support the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, these mesh extenders, in conjunction with a Cisco Business access point, provide seamless connectivity.



Viktiga egenskaper

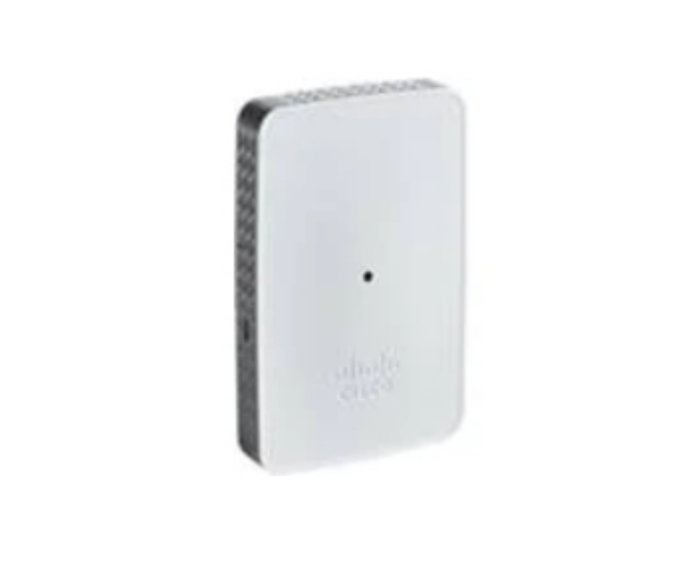

Cisco CBW141ACM. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: 802.1x RADIUS, AES, EAP, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA2,.... Power over Ethernet (PoE). Product colour: White



Teknisk specifikation

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	867 Mbit/s
Frequency band	2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.11r
Number of users	400 user(s)
Channels quantity	29 channels
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
Dynamic Frequency Selection (DFS)	Yes
Transmitting power	20 dBmW

Security algorithms	802.1x RADIUS,AES,EAP,EAP-FAST,EAP-GTC,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WPA2,WPA3
Remote Authentication Dial-In User Service (RADIUS)	Yes

Ethernet LAN (RJ-45) ports	4

Power over Ethernet (PoE)	Yes
AC input voltage	44 - 52 V

Placement	Table
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
LED indicators	Yes
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 CC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) FCC Part 15.107 and 15

Antenna type	Internal
Antenna features	Integrated antenna
Antenna gain level (max)	3 dBi

Built-in processor	Yes
Processor frequency	710 MHz
Flash memory	128 MB
Internal memory	512 MB

Width	152.4 mm
Depth	101.6 mm
Height	37.7 mm
Weight	365 g

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Non-operating altitude	0 - 4500 m
Operating altitude	0 - 3000 m
Storage relative humidity (H-H)	10 - 90 %

Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
