The compact, high-density Cisco 1100 Terminal Services Gateway (C1100 TSG) with Cisco IOS® XE Software allows secure remote management of a wide variety of networking, compute, Internet of Things (IoT), and other devices. It integrates Layer 2 switching and comprehensive security with the ability to integrate wired and wireless WAN connections (LTE Advanced 3.0) into a single rack unit. The C1100 TSG allows secure authentication (through support for RADIUS or TACACS) of remote users connecting to resources on an internal corporate or private network from Internet-connected devices.

Cloud service providers can deploy the C1100 TSG in data centers to provide secure connectivity to terminal servers, computers, IoT devices, and other networking equipment located in the internal network or behind a firewall. In addition, the gateway supports the Cisco IOS Firewall, IPsec and Network Address Translation (NAT), providing security and protection to all devices that connect to or from the terminal gateway. The C1100 TSG supports centralized and remote management capabilities through web-based tools and Cisco IOS® XE Software for full visibility into and control of network configurations at the remote site.



Viktiga egenskaper

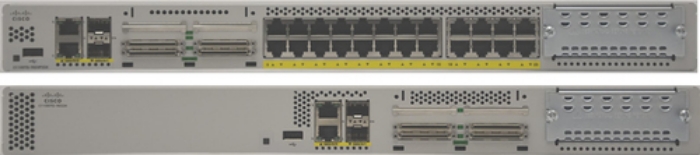

Cisco C1100TG-1N32A. Product colour: Grey. Internal memory: 2000 MB, Internal memory type: DDR4, Flash memory: 4000 MB. Forwarding rate: 500 Mpps. WAN connection: Ethernet (RJ-45), SFP. Power consumption (typical): 30 W, Power consumption (max): 80 W, Input voltage: 100-240 V



Teknisk specifikation

Product colour	Grey

Control display unit	No
Internal memory	2000 MB
Internal memory type	DDR4
Flash memory	4000 MB

Forwarding rate	500 Mpps

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	1
WAN connection	Ethernet (RJ-45),SFP

Power consumption (max)	80 W
Power consumption (typical)	30 W
Input voltage	100-240 V
Input frequency	50-60 Hz
Input current	4.2 A

Width	444 mm
Height	44 mm
Depth	305 mm
Weight	3990 g

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
