Produktbeskrivning

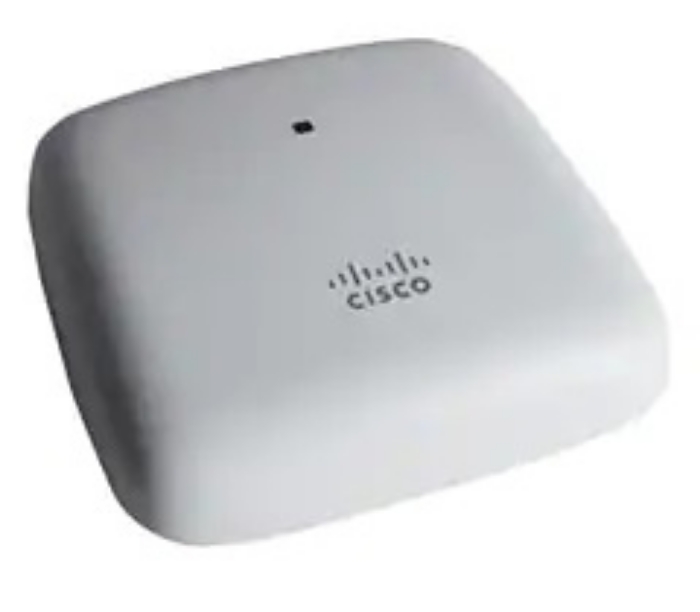

Ideal for smaller networks, the Cisco® Business 140AC Access Point brings a full slate of Cisco high-performance functionality to the business environment.

The Cisco Business 140AC Access Point delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 (Figure 1). It also meets the growing flexibility requirements of wireless networks by introducing mesh technology—all while delivering a simple user experience.

The 140AC access point extends coverage and capacity to Wi-Fi clients such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

By adhering to the 802.11ac Wave 2 standard, the Cisco Business 140AC Access Point delivers a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps, providing the necessary foundation to stay ahead of the performance expectations and needs of wireless users.

In recent years, small businesses have increasingly preferred wireless access as the principal form of network connectivity. Along with this shift, there is an expectation that wireless should enable a high-performance experience. The Cisco Business 140AC Access Point delivers industry-leading performance for highly secure and reliable wireless connections, for a optimal end-user experience.

Increased wireless performance and coverage, featuring mesh technology
The Cisco Business 140AC Access Point supports the latest 802.11ac Wave 2 standard for higher performance, greater coverage, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices and applications that will soon become a common part of the network.

Integrated mesh technology enables deployment flexibility that is simple and secure. You can easily expand coverage and capacity using Cisco Business wireless mesh extenders, which include models that can be placed on a desktop, plugged into an AC electrical outlet, or mounted directly to a wall.

Cisco Business Mobile app
The Cisco Business 140AC Access Point is managed by the Cisco Business Mobile app, an intuitive client application that simplifies traditional challenges associated with wireless network deployment, right from your mobile device. You can easily extend your network by adding new mesh extenders using Quick Response (QR) codes and wireless network activation in minutes. A robust management capability dynamically changes network configuration such as enabling secure guest access. Network usage, traffic patterns, and network throughput can be closely monitored, providing a real-time snapshot; this not only provides peace of mind, it virtually ensures optimal user experience. The Cisco Business Mobile app is available for iPhone, iPad, and Android devices.

Power over Ethernet
The Cisco Business 140AC Access Point features a single Gigabit Ethernet uplink port and is powered by Power over Ethernet (802.3af PoE standard).

Mounting
This sleek, compact access point is designed with flexible mounting options in mind. You can mount it directly on the ceiling (including T-bar rail mounting) or a wall. It is easy to install, and the mounting hardware is included.



Viktiga egenskaper

Cisco CBW140AC. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: 802.1x RADIUS, AES, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 8.3 W



Teknisk specifikation

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 - 2.472; 5.745 - 5.805 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.11r,IEEE 802.1x,IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
Number of users	400 user(s)
Channels quantity	17 channels
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Dynamic Frequency Selection (DFS)	Yes
Transmitting power	20 dBmW

Security algorithms	802.1x RADIUS,AES,EAP-FAST,EAP-GTC,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,WPA2,WPA3
MAC address filtering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0

Power over Ethernet (PoE)	Yes
Power consumption (max)	8.3 W

Placement	Ceiling
Product colour	White
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B) FCC Part 15.107 / 15

Antenna type	Internal
Antenna features	Integrated antenna
Antenna gain level (max)	4 dBi

Built-in processor	Yes
Processor frequency	710 MHz
Flash memory	256 MB
Internal memory	1024 MB

Width	150.8 mm
Depth	150.8 mm
Height	33 mm
Weight	400 g

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 90 %
Non-operating altitude	3000 - 4500 m
Operating altitude	0 - 3000 m

Quantity per pack	1 pc(s)
