Produktbeskrivning

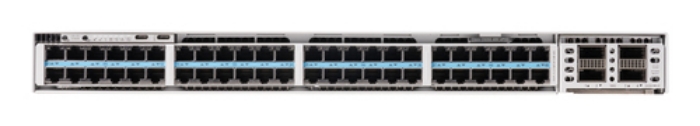

Cisco C9350-48HX is optimized for enterprise access layer deployments requiring high-throughput multigigabit Ethernet and scalable power delivery.

Designed for dense access environments with multigigabit interfaces supporting Wi-Fi 6/6E/7 and up to 90W UPOE+ per port for powering smart building systems, IP surveillance, and IT/OT endpoints.



Viktiga egenskaper

Cisco Catalyst C9350-48HX. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 64000 entries, Switching capacity: 2096 Gbit/s. Networking standards: IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
MIB support	Yes

Basic switching RJ-45 Ethernet ports quantity	48

Networking standards	IEEE 802.3bt
10G support	Yes
Full duplex	Yes
VLAN support	Yes

MAC address table	64000 entries
Switching capacity	2096 Gbit/s
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9216

Access Control List (ACL)	Yes
IGMP snooping	Yes

Multicast support	Yes

Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes

Internal memory	16000 MB
Flash memory	18000 MB
Mean time between failures (MTBF)	277660 h

Power source	AC
AC input voltage	100 - 230 V
AC input frequency	50/60 Hz
Power consumption (typical)	90 W

Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	4320 W

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90 %

Width	445 mm
Depth	472 mm
Height	44 mm
Weight	8500 g

Manual	Yes
