Produktbeskrivning

The Cisco Catalyst 8500 Series Edge Platforms are high-performance cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.

Foundation for Software-Defined WAN
Cisco® Catalyst® 8500 Series Edge Platforms (Catalyst 8500 and Catalyst 8500L) with Cisco IOS® XE SD-WAN Software deliver Cisco’s secure, cloud-scale SD-WAN solution for aggregation sites. The Catalyst 8500 Edge Platforms feature the all-new third-generation Cisco Quantum Flow Processor (QFP), the Catalyst 8500 Series Edge Platforms are built for services from the ground up. The Catalyst 8500L Edge Platform features an x86 based platform architecture that is purpose built to continue delivering the same experience as an ASR1000 platform. The Catalyst 8500 Series Edge Platforms are compact 1RU devices with flexible interface options, including 1GE, 10GE, 40GE, and 100GE ports. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud.



Viktiga egenskaper

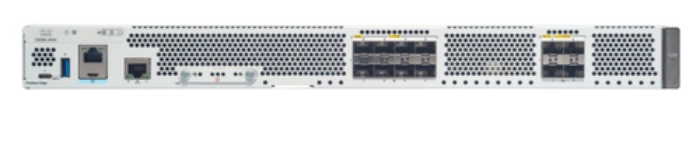

Cisco C8500-12X. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. Networking standards: IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah. DC input voltage: 40 - 72 V. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes

Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
SFP+ module slots quantity	12
Console port	RJ-45

Networking standards	IEEE 802.1Q,IEEE 802.1ag,IEEE 802.3ah
10G support	Yes
Port mirroring	Yes
IP routing	Yes

Throughput	51000 Mpps

DHCP features	DHCP client,DHCP relay,DHCP server
Access Control List (ACL)	Yes
Access Control List (ACL) rules	4000
Access Control List (ACL) IPv4 entries	380000
Security algorithms	128-bit AES,256-bit AES,IPSec,MD5,RSA,SHA-256,SHA-384,SHA-512

Multicast support	Yes

Rack mounting	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes

AC input voltage	85 - 264 V
DC input voltage	40 - 72 V

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	152 - 3048 m

Width	444.5 mm
Depth	468.88 mm
Height	43.9 mm
