Produktbeskrivning

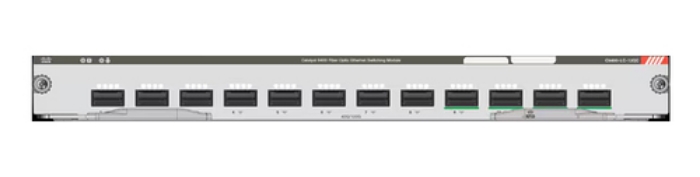

Cisco Catalyst 9400 Series 100G/40G QSFP28 Line Card

The Cisco Catalyst 9400 Series 12-port 40 Gigabit Ethernet, or 4-port 100 Gigabit Ethernet plus 4-port 40 Gigabit Ethernet line card can be deployed for high-performance and high-density 100G or 40 Gigabit Ethernet aggregations in the campus and in small to medium-sized networks as a core switch. The Cisco Catalyst 9400 Series 12-port 40G Gigabit Ethernet line card supports standard Quad Small Form-Factor Pluggable 28 and Plus (QSFP28 and QSFP+) optics. The ports can be used full 40 Gigabit Ethernet or 100 and 40 Gigabit Ethernet to support phased migration from 40 Gigabit Ethernet to 100 Gigabit Ethernet.



Viktiga egenskaper

Cisco C9400-LC-12QC. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az,.... Fiber optic connector: QSFP, QSFP+



Teknisk specifikation

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Networking standards	IEEE 802.3z,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3bt,IEEE 802.3at,IEEE 802.3af,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3an
Jumbo frames support	Yes

Fiber optic connector	QSFP,QSFP+

Installed SFP modules quantity	12

Operating altitude	-60 - 3000 m
Operating relative humidity (H-H)	10 - 95 %
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
