Produktbeskrivning

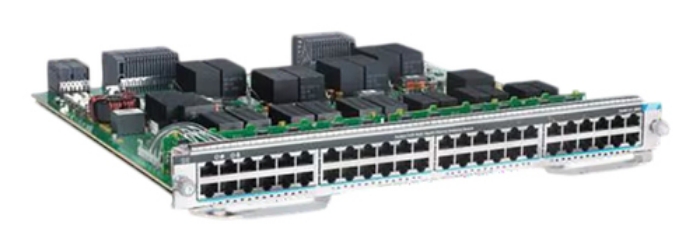

Cisco Catalyst 9400 Series 48-Port 10G mGig (RJ-45) Data Line Card (C9400-LC-48TX)

The Catalyst 9400 Series switch 48 port multigigabit Data line card supports 10GBASET, 5/2.5Gbps, and 1000/100Mbps. Designed for higher bandwidth copper deployments.



Viktiga egenskaper

Cisco C9400-LC-48TX. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz,.... Power consumption (typical): 90 W



Teknisk specifikation

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3ab,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3bz,IEEE 802.3x,IEEE 802.3z
Jumbo frames support	Yes

Ethernet LAN (RJ-45) ports	48

Power consumption (typical)	90 W
Power over Ethernet (PoE)	Yes

Operating altitude	-60 - 3000 m
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95 %
