Produktbeskrivning

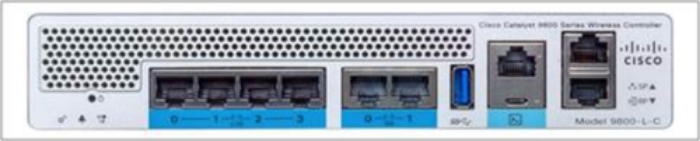

The Cisco® Catalyst® 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises.

Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.

The Cisco Catalyst 9800-L is feature rich and enterprise ready to power your business-critical operations and transform end-user experiences.



Viktiga egenskaper

Cisco Catalyst 9800-L-C. Product colour: Grey. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE.... Security algorithms: AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2. Console port: RJ-45. Width: 215.9 mm, Depth: 230.1 mm, Height: 40.2 mm



Teknisk specifikation

Product colour	Grey
LED indicators	Yes
Certification	FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3
Safety	UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1

Control display unit	No

Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11h,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11u,IEEE 802.11w,IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3u
Wi-Fi	Yes

Security algorithms	AES,DES,EAP,HTTPS,IPSec,SSL/TLS,WEP,WPA2
VLAN support	Yes

Console port	RJ-45
Ethernet LAN (RJ-45) ports	8

Syslog	Yes
Quality of Service (QoS) support	Yes
Web-based management	Yes

Height	40.2 mm
Width	215.9 mm
Depth	230.1 mm
Weight	1790 g

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m

Harmonized System (HS) code	85176990
