Produktbeskrivning

Engineered from the ground up to be the most powerful and energy-efficient wireless controllers Cisco has ever developed, the Cisco Catalyst ™ CW9800H1 and CW9800H2 wireless controllers boast up to a 36% increase in performance and consume up to 40% less power compared to the Catalyst 9800-80. Additionally, both the CW9800H1 and CW9800H2 models are built with a space-saving single-rack-unit design, giving you flexibility within your data centers. Together, these advancements, along with a host of innovative features, deliver a best-in-class wireless solution tailored to accommodate the dynamic and evolving needs of your organization.

The emergence of 6GHz Wi-Fi, along with the rise of new devices, cloud-based applications, smart workplaces, and IoT, calls for a new approach to network deployments, management, and troubleshooting. These new applications and increasing demands are met head-on by the powerful and efficient Cisco Catalyst CW9800 wireless controllers, which are engineered to address your most stringent needs and set the stage for the future.

The Cisco Catalyst CW9800 wireless controllers, built on Cisco IOS® XE, are specifically designed to thrive in dynamic environments, offering simplicity, security, and sustainability. In conjunction with the comprehensive suite of Cisco Catalyst solutions, the CW9800 wireless controllers deliver an unmatched wireless experience, catering to the growing demands of your organization. By integrating these controllers with Cisco Catalyst Center, you can harness applied AI for analytics and insights, automate intricate tasks, and enhance troubleshooting efficiency—helping ensure optimal user experiences and enabling you to focus on your organization's wider strategic objectives.

The Cisco Catalyst CW9800H1 and CW9800H2 support up to 6000 access points and 64,000 clients with up to 100Gbps of maximum throughput. Additionally, they offer your choice of uplinks with either 4 x 25 Gbps (CW9800H1) or 2 x 40 Gbps (CW9800H2) configurations to meet the high throughput demands of next-generation wireless.



Viktiga egenskaper

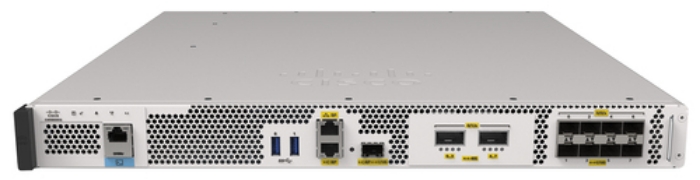

Cisco Catalyst CW9800H2. Product colour: Silver, Rack capacity: 1U. Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11n,..., Data transfer rate: 100 Gbit/s. Security algorithms: WPA2, WPA3, MD5, 3DES, TLS, SHA-1. Console port: Micro USB / RJ45. Power consumption (max): 500 W, Input voltage: 90 - 264 V, Heat dissipation: 1706 BTU/h



Teknisk specifikation

Product colour	Silver
Rack capacity	1U
LED indicators	Yes

Control display unit	No

Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11d,IEEE 802.11e,IEEE 802.11h,IEEE 802.11n,IEEE 802.11k,IEEE 802.11r,IEEE 802.11u,IEEE 802.11w,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11be,IEEE 802.3,IEEE 802.3u,IEEE 802.1Q,IEEE 802.1AX,IEEE 802.11i
Wi-Fi	Yes
Data transfer rate	100 Gbit/s

Security algorithms	WPA2,WPA3,MD5,3DES,TLS,SHA-1
VLAN support	Yes
Number of VLANs	4096

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Console port	Micro USB / RJ45
Number of console ports	2
Ethernet LAN (RJ-45) ports	2
SFP+ ports quantity	10

Quality of Service (QoS) support	Yes
Syslog	Yes
Web-based management	Yes

Power consumption (max)	500 W
Input voltage	90 - 264 V
DC input voltage	40 - 72 V
Heat dissipation	1706 BTU/h

Height	43.9 mm
Width	444.5 mm
Depth	504.7 mm
Weight	9300 g

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 93 %
Operating altitude	0 - 3000 m
