Produktbeskrivning

Built as a full-featured, integrated switching solution for today’s branch office
The Cisco Catalyst™ 8000 SM-Based Switching Modules are crafted to reduce your company's Total Cost of Ownership (TCO) by integrating Multigigabit Ethernet ports within the Cisco Catalyst 8300 Series Edge Platforms. Extending the power of intent-based networking, this integration allows network administrators to configure a single box for all LAN and WAN needs, lowering network complexity and maintenance.

The Cisco Catalyst 8000 SM-Based Switching Modules provide for an enterprise-class line of features on the Cisco Catalyst 8300 Series Edge Platforms, greatly expanding the capabilities of the platform by integrating industry-leading Layer 2 switching with feature sets that resemble those found in the Cisco Catalyst 9000 switching family.



Viktiga egenskaper

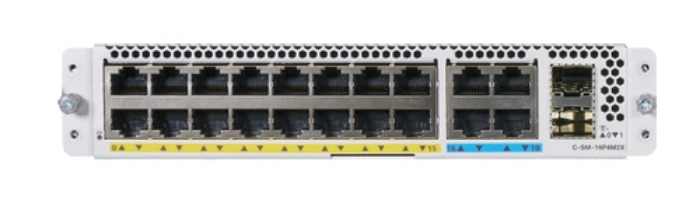

Cisco C-SM-16P4M2X=. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 1000,2500 Mbit/s, Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1AE. MAC address table: 32000 entries. Security algorithms: 128-bit AES. Width: 438.2 mm, Depth: 469.9 mm, Height: 89 mm



Teknisk specifikation

Ethernet interface type	2.5 Gigabit Ethernet,Gigabit Ethernet
Ethernet LAN data rates	1000,2500 Mbit/s
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1AE
Jumbo frames support	Yes
Link aggregation	Yes

MAC address table	32000 entries
Number of VLANs	1000

Ethernet LAN (RJ-45) ports	20
SFP+ module slots quantity	2

Quality of Service (QoS) support	Yes
Access Control List (ACL)	Yes
Security algorithms	128-bit AES

Power over Ethernet (PoE)	Yes

Storage temperature (T-T)	-20 - 65 °C

Width	438.2 mm
Depth	469.9 mm
Height	89 mm
Weight	8800 g
