Produktbeskrivning

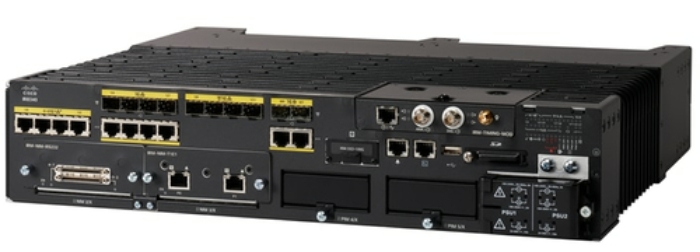

The Cisco Catalyst IR8300 Rugged Series Router is Cisco’s first industrial-grade fully integrated routing and switching platform. Built on the Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) and Quantum Flow Processor (QFP), which powers the industry-leading Cisco Catalyst products, the IR8300 is designed to provide outstanding flexibility and adaptability to address the latest needs of the network evolution. The IR8300 supports U.S. public safety FirstNet services and new 5G services and is built for accelerated services, multilayer security, and edge intelligence. It can be deployed in the harsh, rugged environments found in the energy, transportation, and oil and gas industries.
The Catalyst IR8300 is designed to support the communications needs of the energy delivery infrastructure. This infrastructure includes substation applications supporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, co-generation, and trackside operations. Additional applications include transmission pipelines, distribution mains, and service lines for oil and gas and water. Router has been extensively tested to meet challenging substation compliance standards, including IEEE 1613 and IEC 61850-3.
The Catalyst IR8300 with Cisco IOS XE supports Cisco vManage, delivering Cisco’s secure, cloud-scale SD-WAN solution. It is purpose-built for high performance and integrated SD-WAN services, with the flexibility to deliver security and networking services together from the cloud or on premises. Powered by the Cisco IOS XE fully programmable software architecture with API support, the platform can facilitate automation at scale. It comes with a Trustworthy Solutions 2.0 infrastructure that secures the platform against threats and vulnerabilities with integrity verification and remediation of threats.
Viktiga egenskaper
Cisco IR8340. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 256-bit AES. Flash memory: 16000 MB, Internal memory: 8000 MB. Product colour: Black, Rack capacity: 2U. Power consumption (typical): 60 W, Power consumption (max): 86 W, AC input voltage: 100 - 240 V
Teknisk specifikation
WAN connection
| Ethernet WAN | Yes |
|---|
| SIM card slot | No |
|---|
Network
| Ethernet interface type | Gigabit Ethernet |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Static route | Yes |
|---|
| VLAN support | Yes |
|---|
Management features
| Web-based management | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 12 |
|---|
| Installed SFP modules quantity | 4 |
|---|
| Combo SFP ports quantity | 4 |
|---|
Protocols
| DHCP client | Yes |
|---|
| DHCP server | Yes |
|---|
Security
| Security algorithms | 256-bit AES |
|---|
| Firewall | Yes |
|---|
| URL filtering | Yes |
|---|
| Access Control List (ACL) | Yes |
|---|
| Network address translation (NAT) | Yes |
|---|
Features
| Built-in processor | Yes |
|---|
| Flash memory | 16000 MB |
|---|
| Internal memory | 8000 MB |
|---|
Design
| Product colour | Black |
|---|
| Rack mounting | Yes |
|---|
| Rack capacity | 2U |
|---|
Power
| Power consumption (typical) | 60 W |
|---|
| Power consumption (max) | 86 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 60 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 438.2 mm |
|---|
| Depth | 381 mm |
|---|
| Height | 88.9 mm |
|---|
