Produktbeskrivning

The Desk is the all-in-one collaboration and productivity device for your desk—at home, in the office, or in a shared space. It is purpose-built for collaborating, whether you’re in a meeting, sharing your laptop screen, or brainstorming with a teammate. The Desk device features a 24-inch, interactive 1080p display, 64-degree 8MP camera, full-range speaker, and a mic array with AI-powered background noise removal.

This powerful device creates a clutter-free desk space, enabling you to be organized and productive. Manage your workday with dynamic layouts and custom views, take the strain off your laptop, and optimize your meetings—all from a single system. Meet without distractions or background noise. Rock a presentation with immersive sharing. Co-create with digital whiteboarding and live content annotations.

Easy setup and management capabilities allow customers to deploy and support thousands of devices at once. And with Control Hub you’ll gain insight into environmental health and device usage with the ability to triage issues from anywhere.

The Cisco Desk transforms the way you meet, work, and co-create from your desk. It features a 24-inch, interactive 1080p display, 64-degree 8MP camera, full-range speaker, microphone system with focused sound pickup and AI-powered background noise removal.

The Desk is a purpose-built collaboration experience, meaning that everything is designed to work simply together. It provides the latest and most advanced Webex features, including immersive sharing, digital whiteboarding, and direct access into Webex App services.

With a USB-C connection, the Desk is your all-in-one meeting device and primary monitor, offering a simple, exceptional collaboration experience that extends beyond the Cisco portfolio to support your collaboration tools of choice.

Features on the Cisco Desk were previously the domain of higher-end video conferencing rooms. Now, you can enable them on every desk and every team across your business. When registered to Webex, additional cloud-based functionalities are enabled that enhance the user experience and team workflow, as well as further simplify deployment.



Viktiga egenskaper

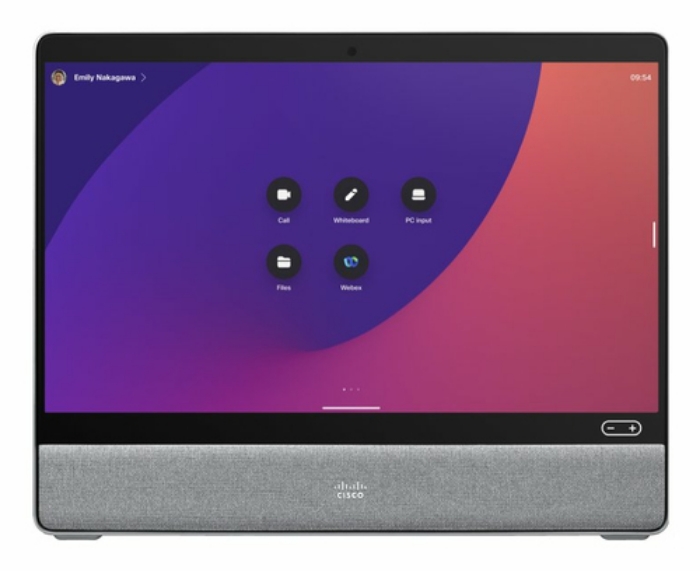

Cisco CS-DESKP-NR-C-K9. Product type: Group video conferencing system. Sensor type: CMOS. HD type: 4K Ultra HD. Ethernet LAN, Wi-Fi. Display: LCD, Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels. Product colour: Silver



Teknisk specifikation

Product type	Group video conferencing system
Product colour	Silver

HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Video formats supported	H.263,H.264

Built-in speaker(s)	Yes
Number of speakers	4
Frequency range	60 - 20000 Hz
Audio Lip synchronization	Yes
Noise reduction	Yes
Voice codecs	AAC,G.711,G.722,G.722.1,G.729
RMS rated power	56 W

HDMI ports quantity	2
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	2

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Megapixel (approx.)	12 MP
Effective sensor resolution	12 MP
Sensor type	CMOS
Image sensor size	1/2.8 "
Horizontal field of view	71 °
Vertical field of view	59 °
Gain control type	Auto

Built-in display	Yes
Display	LCD
Display diagonal	27 "
Display resolution	3840 x 2160 pixels
Contrast ratio (typical)	1000:1
Touchscreen	Yes
Touchscreen type	Capacitive
Viewing angle, vertical	89 °
Viewing angle, horizontal	89 °
Display brightness	300 cd/m²

Microphone mute	Yes

Cable lock slot	Yes
Cable lock slot type	Kensington

Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 90 %

Power consumption (typical)	200 W

Width	630 mm
Depth	75 mm
Height	510 mm
Weight	11600 g
Package width	780 mm
Package depth	220 mm
Package height	780 mm
Package weight	16000 g
