Produktbeskrivning

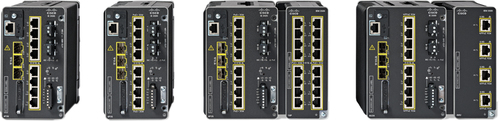

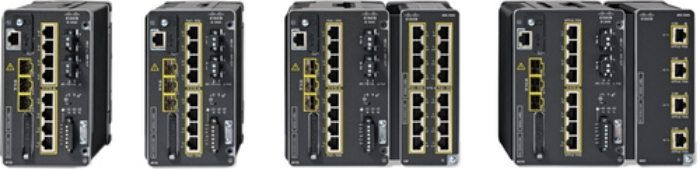

The Cisco IE3500 Rugged Series switches deliver high bandwidth, higher power and feature rich switching performance in a rugged and modular form factor. The Cisco IE3500 Rugged Series are designed with features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, large scale networks, robust security, and edge-to-cloud connectivity.
Viktiga egenskaper
Cisco Catalyst IE3500. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RS-232. Full duplex. MAC address table: 24000 entries. Networking standards: IEEE 802.1Q, IEEE 802.1w, IEEE 802.1ab, IEEE 802.1s, IEEE 802.3ad, IEEE 802.1x, IEEE 802.1AE, IEEE.... DC input voltage: 12 - 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2/L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| Cloud-managed | Yes |
|---|
| ARP inspection | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| USB Type-C ports quantity | 1 |
|---|
| Fiber ports quantity | 3 |
|---|
| Fiber optic connector | SFP |
|---|
| Console port | RS-232 |
|---|
| Power connector | DC-in jack |
|---|
Network
| Networking standards | IEEE 802.1Q,IEEE 802.1w,IEEE 802.1ab,IEEE 802.1s,IEEE 802.3ad,IEEE 802.1x,IEEE 802.1AE,IEEE 802.1D,IEEE 802.1p,IEEE 802.3ah,IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
|---|
| 10G support | Yes |
|---|
| IP routing | Yes |
|---|
| Policy-based routing | Yes |
|---|
| Full duplex | Yes |
|---|
| IPv6 routes | 3500 |
|---|
| Rate limiting | Yes |
|---|
| Link aggregation | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| IPv4 routes | 7000 |
|---|
| Spanning tree protocol | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | Voice VLAN |
|---|
| Number of VLANs | 1024 |
|---|
Data transmission
| MAC address table | 24000 entries |
|---|
| Number of queues | 8 |
|---|
| Static route | Yes |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9198 |
|---|
Security
| DHCP features | DHCP server,DHCP snooping,DHCPv6 relay |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| IGMP entries | 1024 |
|---|
| Authentication type | RADIUS,TACACS+ |
|---|
| SSH/SSL support | Yes |
|---|
| MAC address filtering | Yes |
|---|
| Authentication | MAC-based authentication |
|---|
| BPDU filtering/protection | Yes |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Product colour | Black |
|---|
| DIN rail mounting | Yes |
|---|
Performance
| Memory type | DRAM |
|---|
| Internal memory | 8192 MB |
|---|
| Mean time between failures (MTBF) | 474807 h |
|---|
Technical details
| Compliance certificates | REACH,RoHS,WEEE |
|---|
Power
| Power source | DC/PoE |
|---|
| DC input voltage | 12 - 54 V |
|---|
| Input current | 11.5 A |
|---|
| Power consumption (typical) | 49 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+,PoE++ (4PPoE) |
|---|
| Power over Ethernet (PoE) ports quantity | 8 |
|---|
| Total Power over Ethernet (PoE) budget | 480 W |
|---|
Operational conditions
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 111.3 mm |
|---|
| Depth | 134.4 mm |
|---|
| Height | 152.4 mm |
|---|
| Weight | 2290 g |
|---|
