Produktbeskrivning

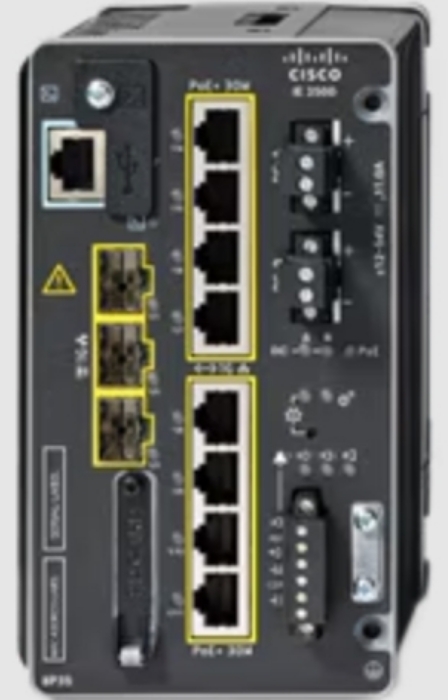

The Cisco IE3500 Rugged Series switches deliver high bandwidth, higher power and feature rich switching performance in a rugged and modular form factor. The Cisco IE3500 Rugged Series are designed with features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, large scale networks, robust security, and edge-to-cloud connectivity.
Viktiga egenskaper
Cisco IE-3500-8P3S-E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 24000 entries. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 12 - 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Power connector | DC-in jack |
|---|
Network
| Networking standards | IEEE 1588v2,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z |
|---|
| 10G support | No |
|---|
| Link aggregation | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Number of VLANs | 1024 |
|---|
Data transmission
| MAC address table | 24000 entries |
|---|
Security
| DHCP features | DHCP server,DHCP snooping |
|---|
| IGMP snooping | Yes |
|---|
| IGMP entries | 1024 |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Stackable | No |
|---|
| Product colour | Black |
|---|
| DIN rail mounting | Yes |
|---|
Performance
| Memory type | DRAM |
|---|
| Internal memory | 8000 MB |
|---|
Power
| Power source | DC |
|---|
| Power supply included | Yes |
|---|
| DC input voltage | 12 - 54 V |
|---|
| Input current | 11 A |
|---|
| Power consumption (typical) | 32 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) ports quantity | 8 |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
|---|
| Power over Ethernet (PoE) power per port | 240 W |
|---|
| Total Power over Ethernet (PoE) budget | 360 W |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 134.4 mm |
|---|
| Depth | 152.4 mm |
|---|
| Height | 88.4 mm |
|---|
| Weight | 1770 g |
|---|
