Produktbeskrivning

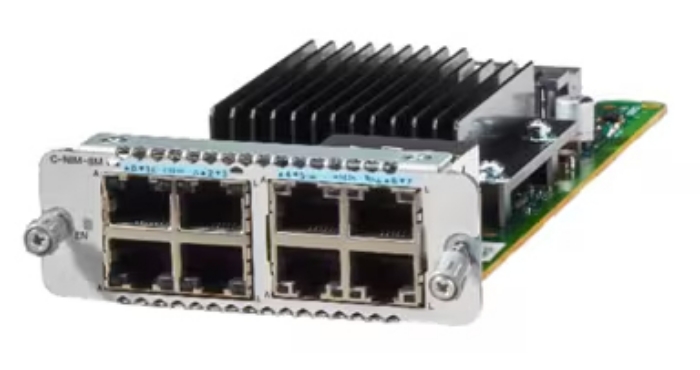

The C-NIM-8M is a LAN/WAN module with eight 2.5G BASE-T (Multigigabit) RJ-45 copper line ports. Its eight ports support 100M/1G/2.5G BASE-T connections also known as Multigigabit or “mGig” ports. The 2.5G mGig ports accommodate full-speed connections for new high-speed branch devices with 2.5G mGig uplinks, such as Wi-Fi 6 Wireless Access Points and Cellular Gateways. 10M (10BASE-T) is not supported on the C-NIM-8M. Four of its ports support up to 90W Cisco Universal Power over Ethernet Plus (Cisco UPOE®+; 802.3bt-compliant) while being backward compatible with PoE, PoE+, and UPOE. The capability for providing 90W UPOE+ can be used for powering even the most demanding devices, such as high-performance Wireless Access Points and Cellular Gateways directly from the host router. As with the other LAN/WAN modules in this family, this module’s two highest-numbered ports can be configured to operate in full Layer 3 mode with the added support of WAN MACsec.
The C-NIM-8M is supported on all Catalyst 8200 and 8300 Series platforms.
Viktiga egenskaper
Cisco C-NIM-8M=. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet LAN data rates: 100,1000,2500 Mbit/s, Networking standards: IEEE 802.1AE, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D,.... Compatibility: Catalyst 8300/8200 Series/8200L. Width: 89 mm, Depth: 184 mm, Height: 32 mm
Teknisk specifikation
Network
| Ethernet interface type | 2.5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
|---|
| Full duplex | Yes |
|---|
| Networking standards | IEEE 802.1AE,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1D,IEEE 802.1x |
|---|
| Jumbo frames support | Yes |
|---|
Data transmission
| Number of VLANs | 1024 |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 8 |
|---|
Performance
| Compatibility | Catalyst 8300/8200 Series/8200L |
|---|
Management features
| Quality of Service (QoS) support | Yes |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 55 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating relative humidity (H-H) | 5 - 85 % |
|---|
| Operating temperature (T-T) | 23 - 131 °F |
|---|
Weight & dimensions
| Width | 89 mm |
|---|
| Depth | 184 mm |
|---|
| Height | 32 mm |
|---|
| Weight | 300 g |
|---|
