Produktbeskrivning

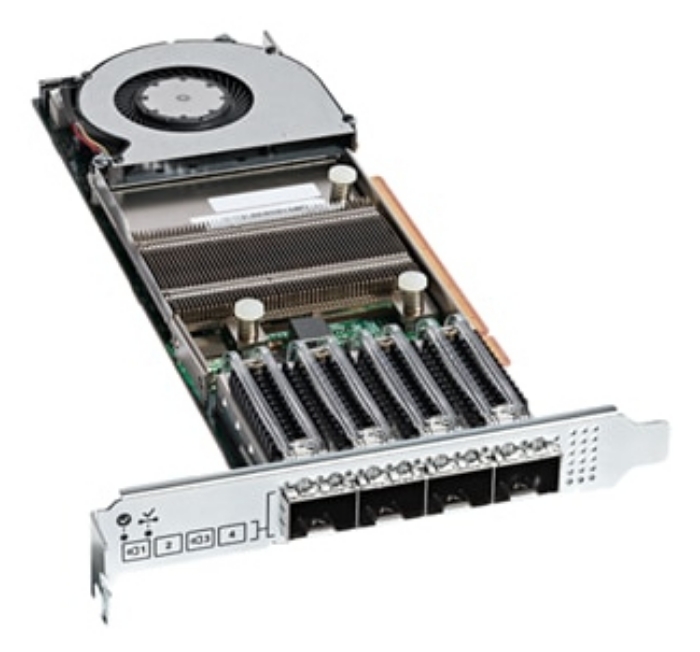

The Cisco UCS VIC 15425 is a quad-port small-form-factor pluggable (SFP+/SFP28/SFP56) PCIe card designed for Cisco UCS C-series M6/M7/M8 rack servers. The card supports 10/25/50-Gbps Ethernet or FCoE. The card can present PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either NICs or HBAs.

When a UCS rack server with VIC 15425 is connected to a fabric interconnect (FI-6536/6400/6300), the VIC 15425 is provisioned through Cisco Intersight Managed Mode (IMM) or Cisco UCS Manager (UCSM) policies. When the UCS rack server with VIC 15425 is connected to a ToR switch such as Cisco Nexus® 9000 Series, the VIC 15425 is provisioned through the Cisco IMC or Intersight policies for a standalone server.



Viktiga egenskaper

Cisco UCSC-P-V5Q50G=. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 50000 Mbit/s. Product colour: Black, Silver



Teknisk specifikation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber ports quantity	4
Fiber optic connector	SFP56
PCI version	4.0

Maximum data transfer rate	50000 Mbit/s
Networking standards	IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.3cd,IEEE 802.3ba,IEEE 802.3bj,IEEE 802.3bm,IEEE 802.3by,IEEE 802.3ae,IEEE 802.3ap
Jumbo frames support	Yes
Jumbo frames	9216
VLAN support	Yes

Internal	Yes
Component for	Server
Product colour	Black,Silver
Compatible products	UCS C-Series M7/M8
