Produktbeskrivning

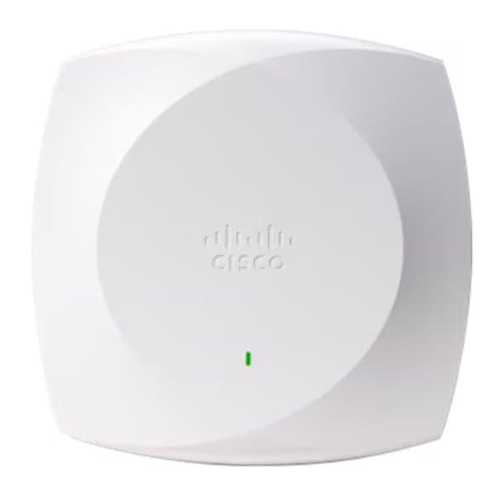

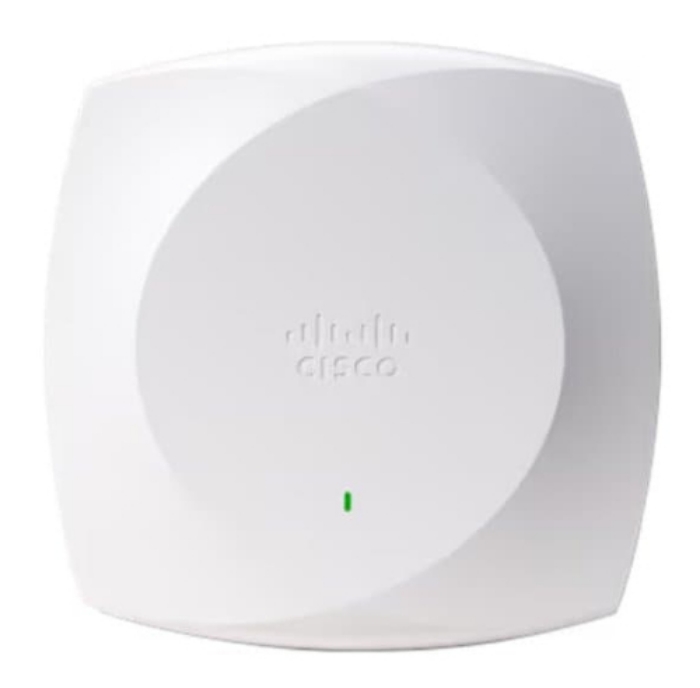

Cisco 9171 Series

The Cisco® Wireless 9171 Series Wi-Fi 7 access points provide a seamless entry into next-generation wireless networking, delivering reliable, high-performance connectivity for environments like boutique hotels, student housing, retail stores, healthcare clinics, remote work hubs, and distributed business locations such as satellite offices, regional branches, and logistics hubs. With a compact, energy-efficient design and flexible management options, the CW9171 helps ensure strong, future-ready connectivity without compromising affordability.

Product overview

The Cisco Wireless 9171 Series Wi-Fi 7 access points are high-performance wireless solutions designed for environments like healthcare clinics, student housing, and distributed business locations. With dual-radio functionality across the 2.4-GHz and 5-GHz or 6-GHz bands, the CW9171 provides reliable, high-speed connectivity (frame rate up to 6120 Mbps) for spaces with low to moderate device density. Flexible deployment options—cloud, on-premises, or hybrid—allow seamless integration into existing networks.

These access points are designed to enhance wireless performance and enable smarter spaces. For customers, the CW9171 Series delivers reliable Wi-Fi 7 performance, enabling advanced applications like IoT integration, telehealth, and seamless customer experiences. The primary business benefits are future-ready connectivity with energy efficiency, reducing power consumption while supporting evolving network demands. This makes CW9171 a cornerstone for modernizing and optimizing network infrastructure.



Viktiga egenskaper

Cisco CW9171i. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 6120 Mbit/s. Security algorithms: EAP, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White



Teknisk specifikation

2.4 GHz	Yes
6 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	6120 Mbit/s
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Networking standards	IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11be,IEEE 802.11n
Bluetooth	Yes
Bluetooth Low Energy (BLE)	Yes
Bluetooth version	5.3
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Band steering	Yes
BeamForming	Yes
Receiver sensitivity	2.4 GHz + 5 GHz or 6 GHz (all 2x2:2)

Security algorithms	EAP,WPA2,WPA3

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1

Power over Ethernet (PoE)	Yes
Power consumption (typical)	30 W

Placement	Ceiling,Wall
Product colour	White

Antenna type	Internal
Antenna direction type	Omni-directional
Antenna gain level (max)	6 dBi

Flash memory	16000 MB
Internal memory	4096 MB

Width	200 mm
Depth	200 mm
Height	53 mm
Weight	874 g

Quick start guide	Yes

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C

Quantity per pack	1 pc(s)
