Produktbeskrivning

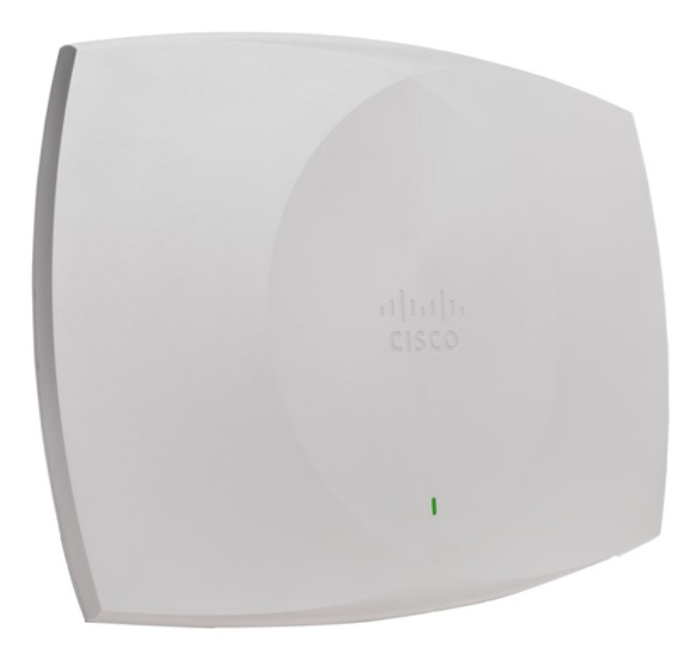

The Cisco Wireless CW9179F is the industry’s first enterprise-grade, Wi-Fi 7 certified high-density access point, made specifically for connecting large public venues. Connect every corner with this convertible indoor-outdoor unit, suitable for stadiums, arenas, festivals, airports, and anywhere where your audience needs reliable and high-performing connectivity. The CW9179F packs a lot of flexibility in an all-in-one integrated unit with software configurable beam patterns and coverage where you need it.
Viktiga egenskaper
Cisco CW9179F. 2.4 GHz, 5 GHz, 6 GHz. Security algorithms: WPA3, WPA2, SHA-256, OWE, AES-GCMP, EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST. Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Teknisk specifikation
Features
| 2.4 GHz | Yes |
|---|
| 6 GHz | Yes |
|---|
| 5 GHz | Yes |
|---|
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
|---|
| Networking standards | IEEE 802.11be,IEEE 802.11ax,IEEE 802.11ac,IEEE 802.11n,IEEE 802.11a,IEEE 802.11g,IEEE 802.3bt,IEEE 802.3at,IEEE 802.3af,IEEE 802.3,IEEE 802.3ab,IEEE 802.11b,IEEE 802.11h,IEEE 802.11d,IEEE 802.11i,IEEE 802.1x |
|---|
| MIMO | Yes |
|---|
| Spatial streams | 4 |
|---|
| MIMO type | Multi User MIMO |
|---|
| Maximal-Ratio Combining (MRC) | Yes |
|---|
| Cyclic Shift Diversity (CSD) | Yes |
|---|
| Dynamic Frequency Selection (DFS) | Yes |
|---|
| BeamForming | Yes |
|---|
Security
| Security algorithms | WPA3,WPA2,SHA-256,OWE,AES-GCMP,EAP-TLS,EAP-TTLS,EAP-PEAP,EAP-FAST |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 3 |
|---|
| USB 2.0 ports quantity | 0 |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+ |
|---|
Design
| Product colour | White |
|---|
Antenna
| Antenna type | Internal & external |
|---|
| Antenna gain level (max) | 12 dBi |
|---|
Weight & dimensions
| Width | 475 mm |
|---|
| Depth | 330 mm |
|---|
| Height | 73 mm |
|---|
| Weight | 4540 g |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Operating temperature (T-T) | -20 - 60 °C |
|---|
| Storage temperature (T-T) | -30 - 70 °C |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
