Produktbeskrivning

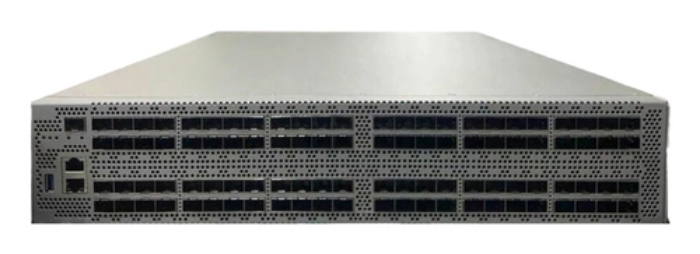

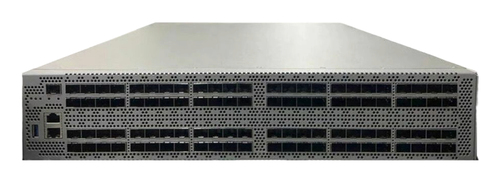

The Cisco MDS 9396V 64-Gbps 96-Port Fibre Channel Switch provides high-speed Fibre Channel connectivity for all-flash arrays and high-performance hosts. This switch offers state-of-the-art analytics and telemetry capabilities built into its next-generation Application-Specific Integrated Circuits (ASIC). This switch allows seamless transition to Fibre Channel Non-Volatile Memory Express (NVMe/FC) workloads. It empowers enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the benefits of greater bandwidth, scale, and consolidation. Some of the main benefits for a small-scale Storage Area Network (SAN) are automatic zoning, nonblocking forwarding, and small port groups of 24 ports. Benefits for a mid- to large-size SAN include higher scale for Fibre Channel control-plane functions such as virtual SANs, fabric login (FLOGI), device aliases, and name servers. The Cisco MDS 9396V switch has 96 ports of 64-Gbps non-oversubscribed line-rate ports, bidirectional airflow, and a fixed-form NVMe/FC-ready SAN switch with enhanced Buffer-to-Buffer (B2B) credits; it is also capable of hardware-assisted Fibre Channel link encryption. Large-scale SAN architectures built with SAN core directors can expand 64-Gbps connectivity to the server rack using these switches configured in either switch mode or N Port Virtualization (NPV) mode. Additionally, the switch supports enhanced diagnostic features such as Inter-Switch Link (ISL) and Host-Bus-Adapter (HBA) diagnostics, remote port and SFP (Read Diagnostic Parameter) diagnostics, remote port beaconing (Link Cable Beaconing) and advanced reliability features such as Forward Error Correction (FEC).
Viktiga egenskaper
Cisco MDS 9396V. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2, Console port: RS-232. Full duplex. Power connector: AC-in jack. Rack mounting, Form factor: 2U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 2 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| USB Type-A ports quantity | 1 |
|---|
| Number of management ports | 1 pc(s) |
|---|
| Fiber ports quantity | 96 |
|---|
| Fiber optic connector | SFP+ |
|---|
| Console port | RS-232 |
|---|
| Power connector | AC-in jack |
|---|
Network
| 10G support | Yes |
|---|
| Full duplex | Yes |
|---|
| Auto-sensing | Yes |
|---|
| Rate limiting | Yes |
|---|
Security
| Access Control List (ACL) | Yes |
|---|
| Authentication type | RADIUS,TACACS+ |
|---|
| Security algorithms | SSH-2,SNMPv3 |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 2U |
|---|
| Product colour | Grey |
|---|
| LED indicators | System |
|---|
| Number of fans | 3 fan(s) |
|---|
| Airflow direction | Front-to-back airflow |
|---|
Power
| Power source | AC |
|---|
| Power supply included | Yes |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
| Number of power supply units | 2 |
|---|
| AC input voltage | 90 - 264 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power consumption (typical) | 540 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating altitude | -60 - 2000 m |
|---|
Weight & dimensions
| Width | 442.3 mm |
|---|
| Depth | 607.3 mm |
|---|
| Height | 86.4 mm |
|---|
| Weight | 20000 g |
|---|
Other features
| Bandwidth | 6000 Gbit/s |
|---|
