Produktbeskrivning

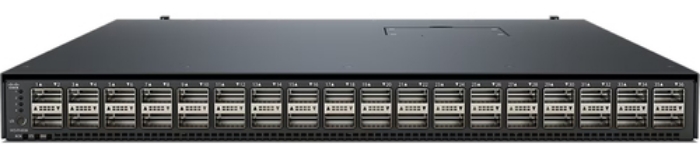

The Cisco UCS 6536 36-Port Fabric Interconnect is a One-Rack-Unit (1RU) 1/10/25/40/100 Gigabit Ethernet, FCoE, and Fibre Channel switch offering up to 7.42 Tbps throughput and up to 36 ports. The switch has 32 40/100-Gbps Ethernet ports and 4 unified ports that can support 40/100-Gbps Ethernet ports or 16 Fiber Channel ports after breakout at 8/16/32-Gbps FC speeds. The 16 FC ports after breakout can operate as an FC uplink or FC storage port. The switch also supports two ports at 1-Gbps speed using QSA, and all 36 ports can breakout for 10- or 25-Gbps Ethernet connectivity. All Ethernet ports can support FCoE.



Viktiga egenskaper

Cisco UCS 6536. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RS-232. MAC address table: 32000 entries. Networking standards: IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1s,.... DC input voltage: 40 - 72 V. Power connector: AC-in jack. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes

Basic switching RJ-45 Ethernet ports quantity	4
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
USB Type-A ports quantity	1
Fiber ports quantity	36
Fiber optic connector	QSFP28
Console port	RS-232
Power connector	AC-in jack

Networking standards	IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Qbb,IEEE 802.1Qaz,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ae,IEEE 802.3by,IEEE 802.3bm
10G support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Flow control support	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN

MAC address table	32000 entries
Throughput	7420 Gbit/s
Jumbo frames support	Yes
Jumbo frames	9216

IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)

Rack mounting	Yes
Form factor	1U
Product colour	Black
Redundant fans support	Yes
Airflow direction	Front-to-back airflow
Number of fans	6 fan(s)

Built-in processor	Yes

Compliance certificates	RoHS

Power source	AC/DC
Power supply included	No
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	40 - 72 V
Power consumption (typical)	348 W
Power consumption (max)	800 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 4000 m

Width	439 mm
Depth	627 mm
Height	44 mm
