Produktbeskrivning

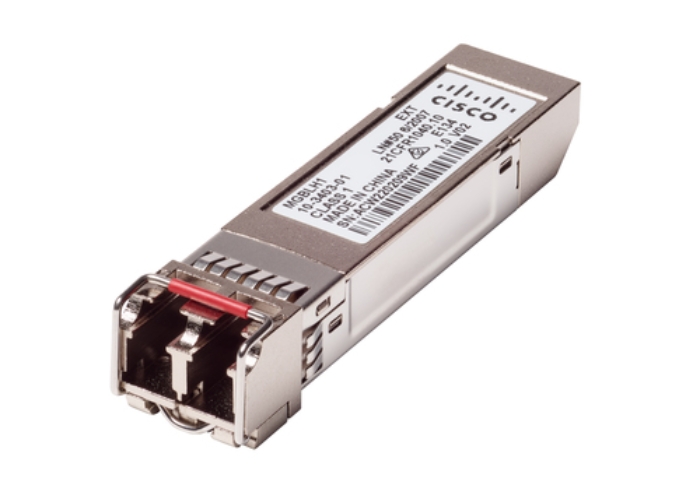

The Cisco MGBLH1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.

The MGBLH1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 40 kilometers.



Viktiga egenskaper

Cisco MGBLH1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LH Mini-GBIC (MGBLH1). SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: mini-GBIC. Brand compatibility: Cisco. Power consumption (typical): 1 W. Safety: FDA 21 CFR 1040.10, 1040.11, EN60950, EN (IEC) 60825-1, 2, Certification: FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B. Width: 56.5 mm, Depth: 13.4 mm, Height: 8.5 mm



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	mini-GBIC
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	LH
Maximum transfer distance	40000 m
Wavelength	1300 nm

Plug and Play	Yes
Hot-swap	Yes
Safety	FDA 21 CFR 1040.10, 1040.11, EN60950, EN (IEC) 60825-1, 2
Country of origin	China
Brand compatibility	Cisco
Certification	FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B

Power consumption (typical)	1 W

Minimum operating temperature	0 °C
Maximum operating temperature	40 °C
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	5 - 90 %

Width	56.5 mm
Depth	13.4 mm
Height	8.5 mm
Weight	20 g

Package width	81.3 mm
Package depth	127 mm
Package height	25.4 mm
Package weight	50 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010

Dimensions (WxDxH)	85 x 134 x 56 mm
