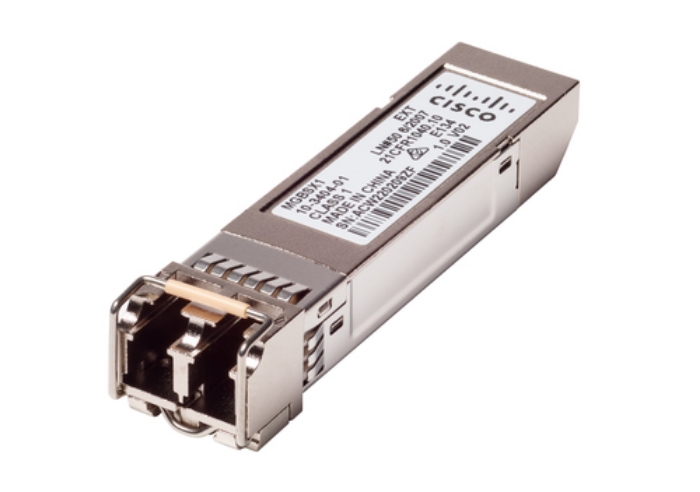

The Cisco MGBSX1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.

The MGBSX1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 500 meters.



Viktiga egenskaper

Cisco MGBSX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-SX Mini-GBIC (MGBSX1). Maximum transfer distance: 550 m, Wavelength: 850 nm. Connectivity technology: Wired. Width: 56.5 mm, Depth: 13.4 mm, Height: 8.5 mm. Package width: 81.3 mm, Package depth: 127 mm, Package height: 25.4 mm. Country of origin: China, Quantity per pack: 1 pc(s)



Teknisk specifikation

Connectivity technology	Wired

Maximum transfer distance	550 m
Wavelength	850 nm

Country of origin	China

Width	56.5 mm
Depth	13.4 mm
Height	8.5 mm
Weight	20 g

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 85 %
Storage relative humidity (H-H)	5 - 90 %

Package width	81.3 mm
Package depth	127 mm
Package height	25.4 mm
Package weight	50 g

Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)

Fiber type	MMF
