Produktbeskrivning

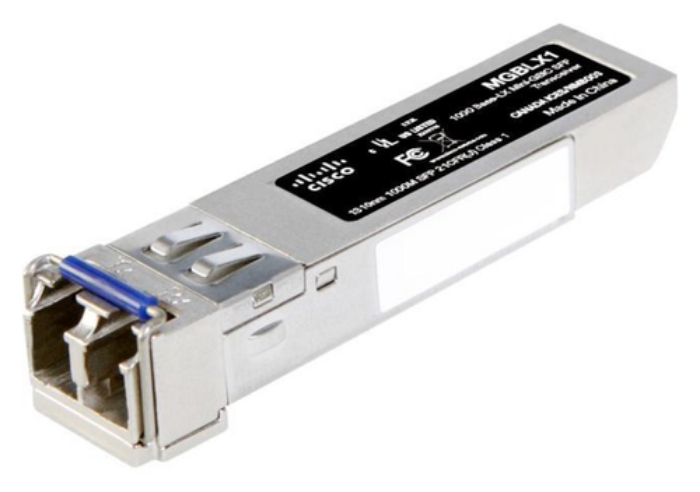

The Cisco MGBLX1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.

The MGBLX1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 10 kilometers.



Viktiga egenskaper

Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1). Maximum data transfer rate: 1000 Mbit/s, Cabling technology: 1000Base-LX. Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Connectivity technology: Wired. Power consumption (typical): 1 W. Width: 55.7 mm, Depth: 13.4 mm, Height: 8.5 mm



Teknisk specifikation

Maximum data transfer rate	1000 Mbit/s
Cabling technology	1000Base-LX

Connectivity technology	Wired

Maximum transfer distance	10000 m
Wavelength	1310 nm

Country of origin	China
Safety	FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2
Certification	FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B.

Power consumption (typical)	1 W

Hot-swap	Yes
Plug and Play	Yes

Width	55.7 mm
Depth	13.4 mm
Height	8.5 mm
Weight	20 g

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 90 %

Package width	81.3 mm
Package depth	127 mm
Package height	25.4 mm
Package weight	50 g

Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)

Transmit power range	-9.5 - -3 dBmW
Dimensions (WxDxH)	13.4 x 55.7 x 8.5 mm
Full duplex	Yes
Connector(s)	LC-LC
Interface	SFP
Fiber type	SMF
