Produktbeskrivning

The Cisco® Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.

The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.

The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.

The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.

Features and Benefits

The Cisco IE 1000 Series Switches are designed for low cost, low ports, and small sizes. They offer:

- Scalability: Four models are available supporting 5, 6, 8 and 10 Ethernet ports, with Fast Ethernet (FE) and Gigabit Ethernet (GE), copper and fiber uplinks options
- Easy integration: Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management
- Fast startup time: Starts 30 seconds from cold boot
- Manageability: Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog
- Security: secure access; port-security
- Minimize data load: VLAN aware, Internet Group Management Protocol (IGMP) and DHCP snooping to filter unwanted data
- Lightly-managed: Spanning-tree protocol (STP), Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol aware
- Gigabit uplink: Two fiber-optic SFP based. uplink for up to 50 miles (80 kilometers) links
- Industrial PoE: Up to eight PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models
- Redundant voltage feeds, alarm relays support and DIN rail mount
- Industrial environmental compliance and certifications



Viktiga egenskaper

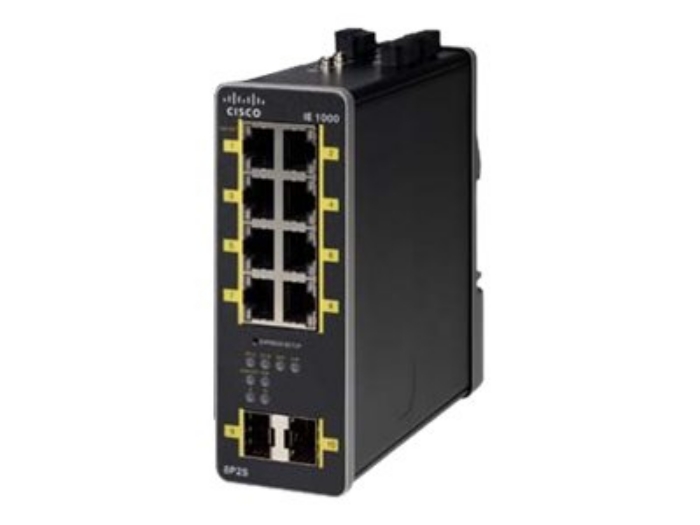

Cisco IE-1000-8P2S-LM. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex, Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE)



Teknisk specifikation

Switch type	Managed
Web-based management	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Fiber optic connector	SFP

Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
VLAN support	Yes

Fiber ethernet cabling technology	1000BASE-X
Transmission distance (max)	80 km

DHCP features	DHCP server,DHCP snooping
IGMP snooping	Yes
Static port security	Yes
BPDU filtering/protection	Yes
Security algorithms	SNMP,SSH

Product colour	Black
International Protection (IP) code	IP30
DIN rail mounting	Yes
Safety	UL/CSA 60950-1, EN 60950-1, IEC 60950-1, NOM - NOM-019-SCF1, UL/CSA/IEC/EN 61010-2-201, CE
Electromagnetic compatibility	FCC 47 CFR 15 A, EN 55022/CISPR 22 A, EN 55016-1-1, -1-4, -2-3 AVCCI A, RoHS, AS/NZS CISPR 22 A, AS/NZS CISPR 24, CISPR11 Class A, CISPR22 A, ICES 003 A, KCC, CE, RCM, EAC, Anatel, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-

Memory type	DDR2-SDRAM
Internal memory	128 MB
Flash memory	160 MB
Mean time between failures (MTBF)	374052 h

Input voltage	48 - 54 V
Power consumption (typical)	10.6 W
Power consumption (max)	205.2 W

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	25.5 W

Operating temperature (T-T)	-20 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Width	45.7 mm
Depth	134 mm
Height	127 mm
Weight	840 g

Harmonized System (HS) code	85176990
