Produktbeskrivning

Fast, secure network connectivity, even in tight spaces​

Extend fast, secure, and fully managed connectivity to devices in harsh operating conditions and space-constrained environments.

Easily place in confined spaces. Integrate within connected industrial solutions that are custom-built and turnkey.​

Incorporate within turnkey industrial solutions​
Deliver fully managed, secure, and reliable custom-built machinery by connecting individual devices within your industrial solution.

Join the circular economy
Invest in products that are designed, built, and delivered with sustainability in mind. The Catalyst IE3100 Rugged Series eliminates the use of paint with anodization and uses 100% recyclable packaging.

​​Bring the best of IT networking into your operations
Gain enterprise-grade networking capabilities with the modern Cisco IOS-XE operating software, management by Cisco DNA Center, and fast recovery for resilient operations.

​​Protect your operations with best-in-class security​
​​Reduce risk and defend your operations against cyberthreats with device authentication, access control, and network segmentation.​



Viktiga egenskaper

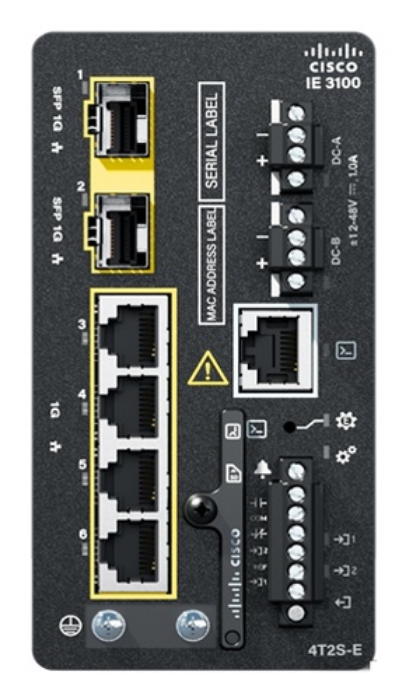

Cisco Catalyst IE3100. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Installed SFP modules quantity: 2, Console port: RS-232/Micro-USB. MAC address table: 8000 entries. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	2
Installed SFP+ modules quantity	0
Console port	RS-232/Micro-USB
Compatible memory cards	SD
Power connector	DC-in jack

Networking standards	IEEE 1588v2,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z
10G support	No
Spanning tree protocol	Yes
IPv4 routes	2000
Link aggregation	Yes
Number of VLANs	256

MAC address table	8000 entries
Number of queues	8

DHCP features	DHCP server,DHCP snooping
IGMP snooping	Yes
IGMP entries	512

Multicast support	Yes

Rack mounting	Yes
Stackable	No
Product colour	Black
DIN rail mounting	Yes

Memory type	DRAM
Internal memory	4000 MB
Mean time between failures (MTBF)	931290 h

Warranty period	5 year(s)
Compliance certificates	CE,Federal Communications Commission (FCC),ICES,KCC

Power source	DC
Power supply included	Yes
Input current	1.6 - 0.4 A
Input voltage	12 - 48 V
Power consumption (typical)	14 W

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet (PoE) modes	4PPoE
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4

Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 12192 m

Width	64.8 mm
Depth	127 mm
Height	129 mm
Weight	910 g

Sustainability compliance	Yes
