Produktbeskrivning

Fast, secure network connectivity, even in tight spaces​

Extend fast, secure, and fully managed connectivity to devices in harsh operating conditions and space-constrained environments.

Easily place in confined spaces. Integrate within connected industrial solutions that are custom-built and turnkey.​

Incorporate within turnkey industrial solutions​
Deliver fully managed, secure, and reliable custom-built machinery by connecting individual devices within your industrial solution.

Join the circular economy
Invest in products that are designed, built, and delivered with sustainability in mind. The Catalyst IE3100 Rugged Series eliminates the use of paint with anodization and uses 100% recyclable packaging.

​​Bring the best of IT networking into your operations
Gain enterprise-grade networking capabilities with the modern Cisco IOS-XE operating software, management by Cisco DNA Center, and fast recovery for resilient operations.

​​Protect your operations with best-in-class security​
​​Reduce risk and defend your operations against cyberthreats with device authentication, access control, and network segmentation.​



Viktiga egenskaper

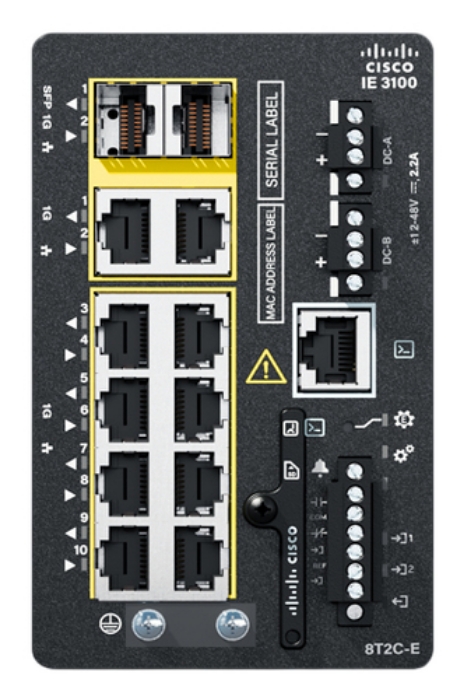

Cisco Catalyst IE3100. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 12 - 48 V. Power connector: DC-in jack. Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack

Networking standards	IEEE 1588v2,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z
10G support	No
Link aggregation	Yes
Spanning tree protocol	Yes
Number of VLANs	256

MAC address table	8000 entries

DHCP features	DHCP server,DHCP snooping
IGMP entries	512
IGMP snooping	Yes

Multicast support	Yes

Rack mounting	Yes
Stackable	No
Product colour	Black
Refurbished	Yes
DIN rail mounting	Yes

Memory type	DRAM
Internal memory	4000 MB

Power source	DC
Power supply included	Yes
DC input voltage	12 - 48 V

Power over Ethernet (PoE)	No
Total Power over Ethernet (PoE) budget	240 W

Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %

Width	76.2 mm
Depth	110 mm
Height	127 mm
Weight	860 g
